FunctionApproximator Class Reference

Base class for all function approximators. More...

#include <FunctionApproximator.hpp>

Inheritance diagram for FunctionApproximator:

Collaboration diagram for FunctionApproximator:

Public Member Functions
	FunctionApproximator (const MetaParameters *const meta_parameters, const ModelParameters *const model_parameters=NULL)
	Initialize a function approximator with meta- and optionally model-parameters. More...
	FunctionApproximator (const ModelParameters *const model_parameters)
	Initialize a function approximator with model-parameters. More...
virtual FunctionApproximator *	clone (void) const =0
	Return a pointer to a deep copy of the FunctionApproximator object. More...
virtual void	train (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets)=0
	Train the function approximator with corresponding input and target examples. More...
void	train (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets, std::string save_directory, bool overwrite=false)
	Train the function approximator with corresponding input and target examples (and write results to file). More...
void	reTrain (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets)
	Re-train the function approximator with corresponding input and target examples. More...
void	reTrain (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets, std::string save_directory, bool overwrite=false)
	Re-train the function approximator with corresponding input and target examples (and write results to file). More...
virtual void	predict (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs)=0
	Query the function approximator to make a prediction. More...
virtual void	predict (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs, Eigen::MatrixXd &variances)
	Query the function approximator to make a prediction, and also to predict its variance. More...
virtual void	predict (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs, std::vector< Eigen::MatrixXd > &variances)
	Query the function approximator to make a prediction, and also to predict its variance. More...
virtual void	predictVariance (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &variances)
	Query the function approximator to get the variance of a prediction This function is not implemented by all function approximators. More...
bool	isTrained (void) const
	Determine whether the function approximator has already been trained with data or not. More...
int	getExpectedInputDim (void) const
	The expected dimensionality of the input data. More...
int	getExpectedOutputDim (void) const
	The expected dimensionality of the output data. More...
virtual std::string	getName (void) const =0
	Get the name of this function approximator. More...
void	getSelectableParameters (std::set< std::string > &selected_values_labels) const
	Return all the names of the parameter types that can be selected. More...
void	setSelectedParameters (const std::set< std::string > &selected_values_labels)
	Determine which subset of parameters is represented in the vector returned by Parameterizable::getParameterVectorSelected. More...
void	getParameterVectorSelectedMinMax (Eigen::VectorXd &min, Eigen::VectorXd &max) const
	Get the minimum and maximum of the selected parameters in one vector. More...
int	getParameterVectorSelectedSize (void) const
	Get the size of the vector of selected parameters, as returned by getParameterVectorSelected(. More...
void	setParameterVectorSelected (const Eigen::VectorXd &values, bool normalized=false)
	Set all the values of the selected parameters with one vector. More...
void	getParameterVectorSelected (Eigen::VectorXd &values, bool normalized=false) const
	Get the values of the selected parameters in one vector. More...
void	getParameterVectorMask (const std::set< std::string > selected_values_labels, Eigen::VectorXi &selected_mask) const
	Get a mask for selecting parameters. More...
int	getParameterVectorAllSize (void) const
	Get the size of the parameter values vector when it contains all available parameter values. More...
void	getParameterVectorAll (Eigen::VectorXd &values) const
	Return a vector that returns all available parameter values. More...
void	setParameterVectorAll (const Eigen::VectorXd &values)
	Set all available parameter values with one vector. More...
UnifiedModel *	getUnifiedModel (void) const
	Return a representation of this function approximator's model as a unified model. More...
std::string	toString (void) const
	Returns a string representation of the object. More...
const MetaParameters *	getMetaParameters (void) const
	Accessor for FunctionApproximator::meta_parameters_. More...
const ModelParameters *	getModelParameters (void) const
	Accessor for FunctionApproximator::model_parameters_. More...
void	setParameterVectorModifierPrivate (std::string modifier, bool new_value)
	Turn certain modifiers on or off, see Parameterizable::setParameterVectorModifier(). More...
virtual bool	saveGridData (const Eigen::VectorXd &min, const Eigen::VectorXd &max, const Eigen::VectorXi &n_samples_per_dim, std::string directory, bool overwrite=false) const
	Generate a grid of inputs, and output the response of the basis functions and line segments for these inputs. More...
Public Member Functions inherited from Parameterizable
virtual	~Parameterizable (void)
	Destructor.
virtual void	getParameterVectorSelectedNormalized (Eigen::VectorXd &values) const
	Get the normalized values of the selected parameters in one vector. More...
void	getParameterVectorSelectedMinMax (Eigen::VectorXd &min, Eigen::VectorXd &max) const
	Get the minimum and maximum of the selected parameters in one vector. More...
void	getParameterVectorAllMinMax (Eigen::VectorXd &min, Eigen::VectorXd &max) const
	Get the minimum and maximum values of the current parameter vector. More...
void	getParameterVectorSelectedRanges (Eigen::VectorXd &ranges) const
	Get the ranges of the selected parameters, i.e. More...
virtual void	setParameterVectorSelectedNormalized (const Eigen::VectorXd &values)
	Set all the values of the selected parameters with one vector of normalized values. More...
void	setSelectedParametersOne (std::string selected)
	Set the parameters that are currently selected. More...
void	setParameterVectorModifier (std::string modifier, bool new_value)
	Turn certain modifiers on or off. More...
void	setVectorLengthsPerDimension (const Eigen::VectorXi &lengths_per_dimension)
	The vector (VectorXd) with parameter values can be split into different parts (as vector<VectorXd>; this function specifices the length of each sub-vector. More...
Eigen::VectorXi	getVectorLengthsPerDimension (void) const
	Get the specified length of each vector in each dimension. More...
void	getParameterVectorSelected (std::vector< Eigen::VectorXd > &values, bool normalized=false) const
	Get the values of the selected parameters in one vector. More...
void	setParameterVectorSelected (const std::vector< Eigen::VectorXd > &values, bool normalized=false)
	Set all the values of the selected parameters with a vector of vectors. More...

Static Public Member Functions
static void	generateInputsGrid (const Eigen::VectorXd &min, const Eigen::VectorXd &max, const Eigen::VectorXi &n_samples_per_dim, Eigen::MatrixXd &inputs_grid)
	Generate a input samples that lie on a grid (much like Matlab's meshgrid) For instance, if min = [2 6], and max = [3 8], and n_samples_per_dim = [3 5] then this function first makes linearly spaces samples along each dimension, e.g. More...

Protected Member Functions
void	setModelParameters (ModelParameters *model_parameters)
	Accessor for FunctionApproximator::model_parameters_. More...
	FunctionApproximator (void)
	Default constructor. More...

Friends
class	boost::serialization::access
	Give boost serialization access to private members. More...
std::ostream &	operator<< (std::ostream &output, const FunctionApproximator &function_approximator)
	Print to output stream. More...

Detailed Description

Base class for all function approximators.

Definition at line 48 of file FunctionApproximator.hpp.

Constructor & Destructor Documentation

FunctionApproximator	(	const MetaParameters *const	meta_parameters,
		const ModelParameters *const	model_parameters = NULL
	)

Initialize a function approximator with meta- and optionally model-parameters.

Parameters

[in]	meta_parameters	The training algorithm meta-parameters
[in]	model_parameters	The parameters of the trained model. If this parameter is not passed, the function approximator is initialized as untrained. In this case, you must call FunctionApproximator::train() before being able to call FunctionApproximator::predict(). Either meta_parameters XOR model-parameters can passed as NULL, but not both.

Definition at line 49 of file FunctionApproximator.cpp.

{
  // At least one of them should not be NULL
  assert(meta_parameters!=NULL || model_parameters!=NULL);

  if (meta_parameters==NULL)
    meta_parameters_ = NULL;
  else
    meta_parameters_ = meta_parameters->clone();

  if (model_parameters==NULL)
    model_parameters_ = NULL;
  else
    model_parameters_ = model_parameters->clone();

  // If both meta- and model-parameters were set, check if they have the same expected input dim.
  if (meta_parameters_!=NULL && model_parameters_!=NULL)
    assert(model_parameters_->getExpectedInputDim()==meta_parameters_->getExpectedInputDim());

}

Here is the call graph for this function:

FunctionApproximator

(

const ModelParameters *const

model_parameters

)

Initialize a function approximator with model-parameters.

Parameters

[in]

model_parameters

The parameters of the trained model.

Definition at line 70 of file FunctionApproximator.cpp.

{
  assert(model_parameters!=NULL);
  meta_parameters_  = NULL;
  model_parameters_ = model_parameters->clone();
}

Here is the call graph for this function:

FunctionApproximator ( void  )

inlineprotected

Default constructor.

Remarks

This default constuctor is required for boost::serialization to work. Since this constructor should not be called by other classes, it is private (boost::serialization is a friend)

Definition at line 308 of file FunctionApproximator.hpp.

{};

Member Function Documentation

virtual FunctionApproximator* clone ( void  ) const

pure virtual

Return a pointer to a deep copy of the FunctionApproximator object.

Returns

Pointer to a deep copy

Implemented in FunctionApproximatorRRRFF, FunctionApproximatorLWPR, FunctionApproximatorGMR, FunctionApproximatorGPR, FunctionApproximatorLWR, and FunctionApproximatorRBFN.

virtual void train ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, const Eigen::Ref< const Eigen::MatrixXd > &  targets  )

pure virtual

Train the function approximator with corresponding input and target examples.

Parameters

[in]	inputs	Input values of the training examples
[in]	targets	Target values of the training examples

Implemented in FunctionApproximatorRRRFF, FunctionApproximatorLWPR, FunctionApproximatorGMR, FunctionApproximatorGPR, FunctionApproximatorLWR, and FunctionApproximatorRBFN.

void train	(	const Eigen::Ref< const Eigen::MatrixXd > &	inputs,
		const Eigen::Ref< const Eigen::MatrixXd > &	targets,
		std::string	save_directory,
		bool	overwrite = false
	)

Train the function approximator with corresponding input and target examples (and write results to file).

Parameters

[in]	inputs	Input values of the training examples
[in]	targets	Target values of the training examples
[in]	save_directory	Directory to which to write results.
[in]	overwrite	Whether to overwrite existing files. true=do overwrite, false=don't overwrite and give a warning.

Definition at line 288 of file FunctionApproximator.cpp.

{
  train(inputs,targets);

  if (save_directory.empty())
    return;

  if (!isTrained())
    return;

  if (getExpectedInputDim()<3)
  {

    VectorXd min = inputs.colwise().minCoeff();
    VectorXd max = inputs.colwise().maxCoeff();

    int n_samples_per_dim = 100;
    if (getExpectedInputDim()==2) n_samples_per_dim = 40;
    VectorXi n_samples_per_dim_vec = VectorXi::Constant(getExpectedInputDim(),n_samples_per_dim);

    MatrixXd inputs_grid;
    FunctionApproximator::generateInputsGrid(min, max, n_samples_per_dim_vec, inputs_grid);

    MatrixXd outputs_grid(inputs_grid.rows(),getExpectedOutputDim());
    predict(inputs_grid,outputs_grid);

    saveMatrix(save_directory,"n_samples_per_dim.txt",n_samples_per_dim_vec,overwrite);
    saveMatrix(save_directory,"inputs_grid.txt",inputs_grid,overwrite);
    saveMatrix(save_directory,"outputs_grid.txt",outputs_grid,overwrite);


    MatrixXd variances_grid(inputs_grid.rows(),getExpectedOutputDim());
    predictVariance(inputs_grid,variances_grid);
    if (!variances_grid.size()==0)
    {
      variances_grid = variances_grid.array().sqrt();
      saveMatrix(save_directory,"variances_grid.txt",variances_grid,overwrite);
    }

    saveGridData(min, max, n_samples_per_dim_vec, save_directory, overwrite);

  }

  MatrixXd outputs(inputs.rows(),getExpectedOutputDim());
  predict(inputs,outputs);


  // saveMatrix does not accept Ref, but only Matrix
  MatrixXd save_matrix;
  save_matrix = inputs;
  saveMatrix(save_directory,"inputs.txt",save_matrix,overwrite);
  save_matrix = targets;
  saveMatrix(save_directory,"targets.txt",save_matrix,overwrite);
  save_matrix = outputs;
  saveMatrix(save_directory,"outputs.txt",save_matrix,overwrite);



  string filename = save_directory+"/plotdata.py";
  ofstream outfile;
  outfile.open(filename.c_str());
  if (!outfile.is_open())
  {
    cerr << __FILE__ << ":" << __LINE__ << ":";
    cerr << "Could not open file " << filename << " for writing." << endl;
  }
  else
  {
    // Python code generation in C++. Rock 'n' roll! ;-)
    if (inputs.cols()==2) {
      outfile << "from mpl_toolkits.mplot3d import Axes3D                                       \n";
    }
    outfile   << "import numpy                                                                  \n";
    outfile   << "import matplotlib.pyplot as plt                                               \n";
    outfile   << "directory = '" << save_directory << "'                                        \n";
    outfile   << "inputs   = numpy.loadtxt(directory+'/inputs.txt')                             \n";
    outfile   << "targets  = numpy.loadtxt(directory+'/targets.txt')                            \n";
    outfile   << "outputs  = numpy.loadtxt(directory+'/outputs.txt')                            \n";
    outfile   << "fig = plt.figure()                                                            \n";
    if (inputs.cols()==2) {
      outfile << "ax = Axes3D(fig)                                                              \n";
      outfile << "ax.plot(inputs[:,0],inputs[:,1],targets, '.', label='targets',color='black')  \n";
      outfile << "ax.plot(inputs[:,0],inputs[:,1],outputs, '.', label='predictions',color='red')\n";
      outfile << "ax.set_xlabel('input_1'); ax.set_ylabel('input_2'); ax.set_zlabel('output')   \n";
      outfile << "ax.legend(loc='lower right')                                                  \n";
    } else {
      outfile << "plt.plot(inputs,targets, '.', label='targets',color='black')                  \n";
      outfile << "plt.plot(inputs,outputs, '.', label='predictions',color='red')                \n";
      outfile << "plt.xlabel('input'); plt.ylabel('output');                                    \n";
      outfile << "plt.legend(loc='lower right')                                                 \n";
    }
    outfile   << "plt.show()                                                                    \n";
    outfile << endl;

    outfile.close();
    //cout << "        ______________________________________________________________" << endl;
    //cout << "        | Plot saved data with:" << " 'python " << filename << "'." << endl;
    //cout << "        |______________________________________________________________" << endl;
  }

}

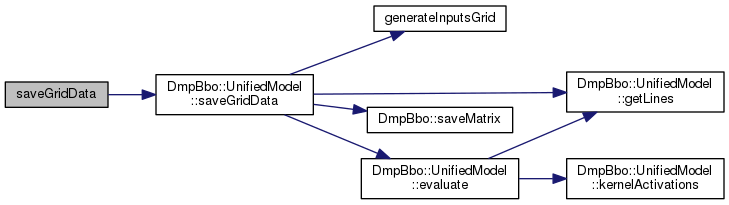

Here is the call graph for this function:

void reTrain	(	const Eigen::Ref< const Eigen::MatrixXd > &	inputs,
		const Eigen::Ref< const Eigen::MatrixXd > &	targets
	)

Re-train the function approximator with corresponding input and target examples.

Parameters

[in]	inputs	Input values of the training examples
[in]	targets	Target values of the training examples Re-training could in principle have been enabled through FunctionApproximator::train, but we wanted to keep a clear disctinction between training (which must be done at least once before FunctionApproximator::predict) can be called and re-training.

Definition at line 130 of file FunctionApproximator.cpp.

{
  delete model_parameters_;
  model_parameters_ = NULL;
  train(inputs,targets);
}

void reTrain	(	const Eigen::Ref< const Eigen::MatrixXd > &	inputs,
		const Eigen::Ref< const Eigen::MatrixXd > &	targets,
		std::string	save_directory,
		bool	overwrite = false
	)

Re-train the function approximator with corresponding input and target examples (and write results to file).

Parameters

[in]	inputs	Input values of the training examples
[in]	targets	Target values of the training examples
[in]	save_directory	Directory to which to write results.
[in]	overwrite	Overwrite existing files in the directory above (default: false) Re-training could in principle have been enabled through FunctionApproximator::train, but we wanted to keep a clear disctinction between training (which must be done at least once before FunctionApproximator::predict) can be called and re-training.

Definition at line 137 of file FunctionApproximator.cpp.

{
  delete model_parameters_;
  model_parameters_ = NULL;
  train(inputs,targets,save_directory,overwrite);
}

virtual void predict ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  outputs  )

pure virtual

Query the function approximator to make a prediction.

Parameters

[in]	inputs	Input values of the query
[out]	outputs	Predicted output values

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict or RRRFF::predict ). Therefore, this function cannot be const.

Implemented in FunctionApproximatorLWR, FunctionApproximatorRRRFF, FunctionApproximatorGMR, FunctionApproximatorGPR, FunctionApproximatorLWPR, and FunctionApproximatorRBFN.

virtual void predict ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  outputs, Eigen::MatrixXd &  variances  )

inlinevirtual

Query the function approximator to make a prediction, and also to predict its variance.

Parameters

[in]	inputs	Input values of the query (n_samples X n_dims_in)
[out]	outputs	Predicted output values (n_samples X n_dims_out)
[out]	variances	Predicted variances for the output values (n_samples X n_dims_out). Note that if the output has a dimensionality>1, these variances should actuall be covariance matrices (use function predict(const Eigen::Ref<const Eigen::MatrixXd>& inputs, Eigen::MatrixXd& outputs, std::vector<Eigen::MatrixXd>& variances) to get the full covariance matrices). So for an output dimensionality of 1 this function works fine. For dimensionality>1 we return only the diagional of the covariance matrix, which may not always be what you want.

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict or RRRFF::predict ). Therefore, this function cannot be const.

Reimplemented in FunctionApproximatorGMR.

Definition at line 142 of file FunctionApproximator.hpp.

  {
    predict(inputs, outputs);
    variances.fill(0);
  }

Here is the call graph for this function:

virtual void predict ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  outputs, std::vector< Eigen::MatrixXd > &  variances  )

inlinevirtual

Query the function approximator to make a prediction, and also to predict its variance.

Parameters

[in]	inputs	Input values of the query (n_samples X n_dims_in)
[out]	outputs	Predicted output values (n_samples X n_dims_out)
[out]	variances	Predicted covariance matrices for the output values. It is is of size (n_samples X n_dims_out X n_dims_out), which has been implemented as a std::vector of Eigen::MatrixXd.

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict or RRRFF::predict ). Therefore, this function cannot be const.

Definition at line 160 of file FunctionApproximator.hpp.

  {
    predict(inputs, outputs);
    for (unsigned int i=0; i<variances.size(); i++)
      variances[i].fill(0);
  }

Here is the call graph for this function:

virtual void predictVariance ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  variances  )

inlinevirtual

Query the function approximator to get the variance of a prediction This function is not implemented by all function approximators.

Therefore, the default implementation fills outputs with 0s.

Parameters

[in]	inputs	Input values of the query (n_samples X n_dims_in)
[out]	variances	Predicted variances for the output values (n_samples X n_dims_out). Note that if the output has a dimensionality>1, these variances should actuall be covariance matrices (use function predict(const Eigen::Ref<const Eigen::MatrixXd>& inputs, Eigen::MatrixXd& outputs, std::vector<Eigen::MatrixXd>& variances) to get the full covariance matrices). So for an output dimensionality of 1 this function works fine. For dimensionality>1 we return only the diagional of the covariance matrix, which may not always be what you want.

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict). Therefore, this function cannot be const.

Reimplemented in FunctionApproximatorGMR, and FunctionApproximatorGPR.

Definition at line 181 of file FunctionApproximator.hpp.

  {
    variances.fill(0);
  }

bool isTrained ( void  ) const

inline

Determine whether the function approximator has already been trained with data or not.

Returns

true if the function approximator has already been trained, false otherwise.

Definition at line 191 of file FunctionApproximator.hpp.

  {
    return (model_parameters_!=NULL);
  }

Here is the call graph for this function:

int getExpectedInputDim

(

void

)

const

The expected dimensionality of the input data.

Returns

Expected dimensionality of the input data

Definition at line 114 of file FunctionApproximator.cpp.

{
  if (model_parameters_!=NULL)
    return model_parameters_->getExpectedInputDim();
  else
    return meta_parameters_->getExpectedInputDim();
}

Here is the call graph for this function:

int getExpectedOutputDim

(

void

)

const

The expected dimensionality of the output data.

Returns

Expected dimensionality of the output data

Todo:

"int getExpectedOutputDim(void) const" should be pure virtual

Definition at line 122 of file FunctionApproximator.cpp.

{
  if (model_parameters_!=NULL)
    return model_parameters_->getExpectedOutputDim();
  else
    return meta_parameters_->getExpectedOutputDim();
}

virtual std::string getName ( void  ) const

pure virtual

Get the name of this function approximator.

Returns

Name of this function approximator

Implemented in FunctionApproximatorLWR, FunctionApproximatorRBFN, FunctionApproximatorGMR, FunctionApproximatorGPR, FunctionApproximatorRRRFF, and FunctionApproximatorLWPR.

void getSelectableParameters ( std::set< std::string > &  selected_values_labels ) const

virtual

Return all the names of the parameter types that can be selected.

Parameters

[out]

selected_values_labels

Names of the parameter types that can be selected

Implements Parameterizable.

Definition at line 200 of file FunctionApproximator.cpp.

{
  if (checkModelParametersInitialized())
    model_parameters_->getSelectableParameters(labels);
  else
    labels.clear();
}

void setSelectedParameters ( const std::set< std::string > &  selected_values_labels )

virtual

Determine which subset of parameters is represented in the vector returned by Parameterizable::getParameterVectorSelected.

Different function approximators have different types of model parameters. For instance, LWR has the centers and widths of basis functions, along with the slopes of each line segment. Parameterizable::setSelectedParameters provides a means to determine which parameters should be returned by Parameterizable::getParameterVectorSelected, i.e. by calling: std::set<std::string> selected; selected.insert("slopes"); model_parameters.setSelectedParameters(selected)

Parameters

[in]

selected_values_labels

The names of the parameters that are selected

Reimplemented from Parameterizable.

Definition at line 194 of file FunctionApproximator.cpp.

{
  if (checkModelParametersInitialized())
    model_parameters_->setSelectedParameters(selected_values_labels);
}

void getParameterVectorSelectedMinMax	(	Eigen::VectorXd &	min,
		Eigen::VectorXd &	max
	)		const

Get the minimum and maximum of the selected parameters in one vector.

Parameters

[out]	min	The minimum of the selected parameters concatenated in one vector
[out]	max	The minimum of the selected parameters concatenated in one vector

Definition at line 145 of file FunctionApproximator.cpp.

{
  if (model_parameters_==NULL)
  {
    cerr << __FILE__ << ":" << __LINE__ << ": Warning: Trying to access model parameters of the function approximator, but it has not been trained yet. Returning empty parameter vector." << endl;
    min.resize(0);
    max.resize(0);
    return;
  }

  model_parameters_->getParameterVectorSelectedMinMax(min,max);
}

int getParameterVectorSelectedSize ( void  ) const

virtual

Get the size of the vector of selected parameters, as returned by getParameterVectorSelected(.

Returns

The size of the vector representation of the selected parameters.

Reimplemented from Parameterizable.

Definition at line 180 of file FunctionApproximator.cpp.

{
  if (checkModelParametersInitialized())
    return model_parameters_->getParameterVectorSelectedSize();
  else
    return 0;
}

void setParameterVectorSelected ( const Eigen::VectorXd &  values, bool  normalized = false  )

virtual

Set all the values of the selected parameters with one vector.

Parameters

[in]	values	The new values of the selected parameters in one vector
[in]	normalized	Whether the data is normalized or not

Reimplemented from Parameterizable.

Definition at line 188 of file FunctionApproximator.cpp.

{
  if (checkModelParametersInitialized())
    model_parameters_->setParameterVectorSelected(values, normalized);
}

void getParameterVectorSelected ( Eigen::VectorXd &  values, bool  normalized = false  ) const

virtual

Get the values of the selected parameters in one vector.

Parameters

[out]	values	The selected parameters concatenated in one vector
[in]	normalized	Whether to normalize the data or not

Reimplemented from Parameterizable.

Definition at line 171 of file FunctionApproximator.cpp.

{
  if (checkModelParametersInitialized())
    model_parameters_->getParameterVectorSelected(values, normalized);
  else
    values.resize(0);
}

void getParameterVectorMask ( const std::set< std::string >  selected_values_labels, Eigen::VectorXi &  selected_mask  ) const

virtual

Get a mask for selecting parameters.

Parameters

[in]	selected_values_labels	Labels of the selected parameter values
[out]	selected_mask	A mask indicating indices of selected parameters. 0 indicates not selected, >0 indicates selected.

For instance, if the parameters consists of centers, widths and slopes the parameter values vector will be something like

    centers     widths    slopes
[ 100 110 120 10 10 10 0.4 0.7 0.4 ]

In this case, if selected_values_labels contains "centers" and "slopes", the mask will be:

    centers     widths    slopes
[   1   1   1  0  0  0   3   3   3 ]

The '0' indicates that these parameters are not selected. The other ones have different numbers so that they may be discerned from one another (as required in Parameterizable::getParameterVectorSelectedMinMax for instance.

Implements Parameterizable.

Definition at line 208 of file FunctionApproximator.cpp.

                                                                                                                                    {
  if (checkModelParametersInitialized())
    model_parameters_->getParameterVectorMask(selected_values_labels,selected_mask);
  else
    selected_mask.resize(0);

};

int getParameterVectorAllSize ( void  ) const

virtual

Get the size of the parameter values vector when it contains all available parameter values.

Returns

The size of the parameter vector

For instance, if the parameters consists of centers, widths and slopes the parameter values vector will be something like

    centers     widths    slopes
[ 100 110 120 10 10 10 0.4 0.7 0.4 ]

then getParameterVectorAllSize() will return 9

Implements Parameterizable.

Definition at line 215 of file FunctionApproximator.cpp.

                                                              {
  if (checkModelParametersInitialized())
    return model_parameters_->getParameterVectorAllSize();
  else
    return 0;
};

void getParameterVectorAll ( Eigen::VectorXd &  values ) const

virtual

Return a vector that returns all available parameter values.

Parameters

[out]

values

All available parameter values in one vector.

Remarks

Contrast this with Parameterizable::getParameterVectorSelected, which return only the SELECTED parameter values. Selecting parameters is done with Parameterizable::setSelectedParameters

Implements Parameterizable.

Definition at line 221 of file FunctionApproximator.cpp.

                                                                            {
  if (checkModelParametersInitialized())
    model_parameters_->getParameterVectorAll(values);
  else
    values.resize(0);
};

void setParameterVectorAll ( const Eigen::VectorXd &  values )

virtual

Set all available parameter values with one vector.

Parameters

[in]

values

All available parameter values in one vector.

Remarks

Contrast this with Parameterizable::setParameterVectorSelected, which sets only the SELECTED parameter values. Selecting parameters is done with Parameterizable::setSelectedParameters

Implements Parameterizable.

Definition at line 227 of file FunctionApproximator.cpp.

                                                                            {
  if (checkModelParametersInitialized())
    model_parameters_->setParameterVectorAll(values);
};

UnifiedModel * getUnifiedModel

(

void

)

const

Return a representation of this function approximator's model as a unified model.

See also the page on Unified Model for Function Approximators

Returns

Unified model representation of this function approximator's model.

Definition at line 108 of file FunctionApproximator.cpp.

{
  return model_parameters_->toUnifiedModel();
}

string toString

(

void

)

const

Returns a string representation of the object.

Returns

A string representation of the object.

Definition at line 232 of file FunctionApproximator.cpp.

{
  string name = "FunctionApproximator"+getName();
  RETURN_STRING_FROM_BOOST_SERIALIZATION_XML(name.c_str());
}

const MetaParameters * getMetaParameters

(

void

)

const

Accessor for FunctionApproximator::meta_parameters_.

Returns

The meta-parameters of the algorithm

Definition at line 85 of file FunctionApproximator.cpp.

{
  return meta_parameters_;
};

const ModelParameters * getModelParameters

(

void

)

const

Accessor for FunctionApproximator::model_parameters_.

Returns

The model parameters of the trained model

Definition at line 91 of file FunctionApproximator.cpp.

{
  return model_parameters_;
};

void setParameterVectorModifierPrivate ( std::string  modifier, bool  new_value  )

virtual

Turn certain modifiers on or off, see Parameterizable::setParameterVectorModifier().

Parameterizable::setParameterVectorModifierPrivate(), This function may (but must not be) overridden by subclasses of Parameterizable, depending on whether the subclass has modifiers (or not)

Parameters

[in]	modifier	The name of the modifier
[in]	new_value	Whether to turn the modifier on (true) or off (false)

Reimplemented from Parameterizable.

Definition at line 390 of file FunctionApproximator.cpp.

{
  model_parameters_->setParameterVectorModifier(modifier,new_value);
}

void generateInputsGrid ( const Eigen::VectorXd &  min, const Eigen::VectorXd &  max, const Eigen::VectorXi &  n_samples_per_dim, Eigen::MatrixXd &  inputs_grid  )

static

Generate a input samples that lie on a grid (much like Matlab's meshgrid) For instance, if min = [2 6], and max = [3 8], and n_samples_per_dim = [3 5] then this function first makes linearly spaces samples along each dimension, e.g.

samples_dim1 = [2 2.5 3] and samples_dim2 = [6 6.5 7 7.5 8] and then combine the combination of samples along all dimensions: inputs_grid = [2 6; 2 6.5; 2 7; 2 7.5 2 8; 2.5 6; 2.5 6.5; 2.5 7; 2.5 7.5 2.5 8; 3 6; 3 6.5; 3 7; 3 7.5 3 8;

Parameters

[in]	min	Minimum values in the grid along each dimension
[in]	max	Maximum values in the grid along each dimension
[in]	n_samples_per_dim	Number of samples along each dimension in the grid
[out]	inputs_grid	A grid of samples

Definition at line 238 of file FunctionApproximator.cpp.

{
  int n_dims = min.size();
  assert(n_dims==max.size());
  assert(n_dims==n_samples_per_dim.size());

  if (n_dims==1)
  {
    inputs_grid = VectorXd::LinSpaced(n_samples_per_dim[0], min[0], max[0]);
  }
  else if (n_dims==2)
  {
    int n_samples = n_samples_per_dim[0]*n_samples_per_dim[1];
    inputs_grid = MatrixXd::Zero(n_samples, n_dims);
    VectorXd x1 = VectorXd::LinSpaced(n_samples_per_dim[0], min[0], max[0]);
    VectorXd x2 = VectorXd::LinSpaced(n_samples_per_dim[1], min[1], max[1]);
    for (int ii=0; ii<x1.size(); ii++)
    {
      for (int jj=0; jj<x2.size(); jj++)
      {
        inputs_grid(ii*x2.size()+jj,0) = x1[ii];
        inputs_grid(ii*x2.size()+jj,1) = x2[jj];
      }
    }
  }
  else
  {
    cerr << __FILE__ << ":" << __LINE__ << ":";
    cerr << "Can only generate input grids for n_dims<3, but found " << n_dims << endl;
  }
}

bool saveGridData ( const Eigen::VectorXd &  min, const Eigen::VectorXd &  max, const Eigen::VectorXi &  n_samples_per_dim, std::string  directory, bool  overwrite = false  ) const

virtual

Generate a grid of inputs, and output the response of the basis functions and line segments for these inputs.

This function is not pure virtual, because this might not make sense for every model parameters class.

Parameters

[in]	min	Minimum values for the grid (one for each dimension)
[in]	max	Maximum values for the grid (one for each dimension)
[in]	n_samples_per_dim	Number of samples in the grid along each dimension
[in]	directory	Directory to which to save the results to.
[in]	overwrite	Whether to overwrite existing files. true=do overwrite, false=don't overwrite and give a warning.

Returns

Whether saving the data was successful.

Reimplemented in FunctionApproximatorLWR, FunctionApproximatorRBFN, FunctionApproximatorGPR, and FunctionApproximatorRRRFF.

Definition at line 270 of file FunctionApproximator.cpp.

{
  if (save_directory.empty())
    return true;

  //MatrixXd inputs;
  //FunctionApproximator::generateInputsGrid(min, max, n_samples_per_dim, inputs);

  if (model_parameters_==NULL)
    return false;
  UnifiedModel* mp_unified = model_parameters_->toUnifiedModel();
  if (mp_unified==NULL)
    return false;

  return mp_unified->saveGridData(min,max,n_samples_per_dim,save_directory,overwrite);

}

Here is the call graph for this function:

void setModelParameters ( ModelParameters *  model_parameters )

protected

Accessor for FunctionApproximator::model_parameters_.

Parameters

[in]

model_parameters

The model parameters of a trained model

Definition at line 97 of file FunctionApproximator.cpp.

{
  if (model_parameters_!=NULL)
  {
    delete model_parameters_;
    model_parameters_ = NULL;
  }

  model_parameters_ = model_parameters;
}

Friends And Related Function Documentation

friend class boost::serialization::access

friend

Give boost serialization access to private members.

Definition at line 331 of file FunctionApproximator.hpp.

std::ostream& operator<< ( std::ostream &  output, const FunctionApproximator &  function_approximator  )

friend

Print to output stream.

Parameters

[in]	output	Output stream to which to write to
[in]	function_approximator	Function approximator to write

Returns

Output stream

Remarks

Calls virtual function FunctionApproximator::toString, which must be implemented by subclasses: http://stackoverflow.com/questions/4571611/virtual-operator

Definition at line 244 of file FunctionApproximator.hpp.

                                                                                                       {
    output << function_approximator.toString();
    return output;
  }

---

The documentation for this class was generated from the following files:

• FunctionApproximator.hpp
• FunctionApproximator.cpp
