FunctionApproximatorGMR Class Reference

GMR (Gaussian Mixture Regression) function approximator. More...

#include <FunctionApproximatorGMR.hpp>

Inheritance diagram for FunctionApproximatorGMR:

Collaboration diagram for FunctionApproximatorGMR:

Public Member Functions
	FunctionApproximatorGMR (const MetaParametersGMR *const meta_parameters, const ModelParametersGMR *const model_parameters=NULL)
	Initialize a function approximator with meta- and model-parameters. More...
	FunctionApproximatorGMR (const ModelParametersGMR *const model_parameters)
	Initialize a function approximator with model parameters. More...
virtual FunctionApproximator *	clone (void) const
	Return a pointer to a deep copy of the FunctionApproximator object. More...
void	train (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets)
	Train the function approximator with corresponding input and target examples. More...
void	predict (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &output)
	Query the function approximator to make a prediction. More...
void	predictVariance (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &variances)
	Query the function approximator to get the variance of a prediction This function is not implemented by all function approximators. More...
void	predict (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs, Eigen::MatrixXd &variances)
	Query the function approximator to make a prediction, and also to predict its variance. More...
std::string	getName (void) const
	Get the name of this function approximator. More...
void	predictDot (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs, Eigen::MatrixXd &outputs_dot)
	Query the function approximator to make a prediction and to compute the derivate of that prediction. More...
void	predictDot (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs, Eigen::MatrixXd &outputs_dot, Eigen::MatrixXd &variances)
	Query the function approximator to make a prediction and to compute the derivate of that prediction, and also to predict its variance. More...
void	trainIncremental (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets)
	Train the function approximator incrementally with corresponding input and target examples. More...
Public Member Functions inherited from FunctionApproximator
	FunctionApproximator (const MetaParameters *const meta_parameters, const ModelParameters *const model_parameters=NULL)
	Initialize a function approximator with meta- and optionally model-parameters. More...
	FunctionApproximator (const ModelParameters *const model_parameters)
	Initialize a function approximator with model-parameters. More...
void	train (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets, std::string save_directory, bool overwrite=false)
	Train the function approximator with corresponding input and target examples (and write results to file). More...
void	reTrain (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets)
	Re-train the function approximator with corresponding input and target examples. More...
void	reTrain (const Eigen::Ref< const Eigen::MatrixXd > &inputs, const Eigen::Ref< const Eigen::MatrixXd > &targets, std::string save_directory, bool overwrite=false)
	Re-train the function approximator with corresponding input and target examples (and write results to file). More...
virtual void	predict (const Eigen::Ref< const Eigen::MatrixXd > &inputs, Eigen::MatrixXd &outputs, std::vector< Eigen::MatrixXd > &variances)
	Query the function approximator to make a prediction, and also to predict its variance. More...
bool	isTrained (void) const
	Determine whether the function approximator has already been trained with data or not. More...
int	getExpectedInputDim (void) const
	The expected dimensionality of the input data. More...
int	getExpectedOutputDim (void) const
	The expected dimensionality of the output data. More...
void	getSelectableParameters (std::set< std::string > &selected_values_labels) const
	Return all the names of the parameter types that can be selected. More...
void	setSelectedParameters (const std::set< std::string > &selected_values_labels)
	Determine which subset of parameters is represented in the vector returned by Parameterizable::getParameterVectorSelected. More...
void	getParameterVectorSelectedMinMax (Eigen::VectorXd &min, Eigen::VectorXd &max) const
	Get the minimum and maximum of the selected parameters in one vector. More...
int	getParameterVectorSelectedSize (void) const
	Get the size of the vector of selected parameters, as returned by getParameterVectorSelected(. More...
void	setParameterVectorSelected (const Eigen::VectorXd &values, bool normalized=false)
	Set all the values of the selected parameters with one vector. More...
void	getParameterVectorSelected (Eigen::VectorXd &values, bool normalized=false) const
	Get the values of the selected parameters in one vector. More...
void	getParameterVectorMask (const std::set< std::string > selected_values_labels, Eigen::VectorXi &selected_mask) const
	Get a mask for selecting parameters. More...
int	getParameterVectorAllSize (void) const
	Get the size of the parameter values vector when it contains all available parameter values. More...
void	getParameterVectorAll (Eigen::VectorXd &values) const
	Return a vector that returns all available parameter values. More...
void	setParameterVectorAll (const Eigen::VectorXd &values)
	Set all available parameter values with one vector. More...
UnifiedModel *	getUnifiedModel (void) const
	Return a representation of this function approximator's model as a unified model. More...
std::string	toString (void) const
	Returns a string representation of the object. More...
const MetaParameters *	getMetaParameters (void) const
	Accessor for FunctionApproximator::meta_parameters_. More...
const ModelParameters *	getModelParameters (void) const
	Accessor for FunctionApproximator::model_parameters_. More...
void	setParameterVectorModifierPrivate (std::string modifier, bool new_value)
	Turn certain modifiers on or off, see Parameterizable::setParameterVectorModifier(). More...
virtual bool	saveGridData (const Eigen::VectorXd &min, const Eigen::VectorXd &max, const Eigen::VectorXi &n_samples_per_dim, std::string directory, bool overwrite=false) const
	Generate a grid of inputs, and output the response of the basis functions and line segments for these inputs. More...
Public Member Functions inherited from Parameterizable
virtual	~Parameterizable (void)
	Destructor.
virtual void	getParameterVectorSelectedNormalized (Eigen::VectorXd &values) const
	Get the normalized values of the selected parameters in one vector. More...
void	getParameterVectorSelectedMinMax (Eigen::VectorXd &min, Eigen::VectorXd &max) const
	Get the minimum and maximum of the selected parameters in one vector. More...
void	getParameterVectorAllMinMax (Eigen::VectorXd &min, Eigen::VectorXd &max) const
	Get the minimum and maximum values of the current parameter vector. More...
void	getParameterVectorSelectedRanges (Eigen::VectorXd &ranges) const
	Get the ranges of the selected parameters, i.e. More...
virtual void	setParameterVectorSelectedNormalized (const Eigen::VectorXd &values)
	Set all the values of the selected parameters with one vector of normalized values. More...
void	setSelectedParametersOne (std::string selected)
	Set the parameters that are currently selected. More...
void	setParameterVectorModifier (std::string modifier, bool new_value)
	Turn certain modifiers on or off. More...
void	setVectorLengthsPerDimension (const Eigen::VectorXi &lengths_per_dimension)
	The vector (VectorXd) with parameter values can be split into different parts (as vector<VectorXd>; this function specifices the length of each sub-vector. More...
Eigen::VectorXi	getVectorLengthsPerDimension (void) const
	Get the specified length of each vector in each dimension. More...
void	getParameterVectorSelected (std::vector< Eigen::VectorXd > &values, bool normalized=false) const
	Get the values of the selected parameters in one vector. More...
void	setParameterVectorSelected (const std::vector< Eigen::VectorXd > &values, bool normalized=false)
	Set all the values of the selected parameters with a vector of vectors. More...

Protected Member Functions
void	kMeansInit (const Eigen::MatrixXd &data, std::vector< Eigen::VectorXd > &means, std::vector< double > &priors, std::vector< Eigen::MatrixXd > &covars, int n_max_iter=1000)
	Initialize Gaussian for EM algorithm using k-means. More...
void	firstDimSlicingInit (const Eigen::MatrixXd &data, std::vector< Eigen::VectorXd > &means, std::vector< double > &priors, std::vector< Eigen::MatrixXd > &covars)
	Initialize Gaussian for EM algorithm using a same-size slicing on the first dimension (method used in Calinon GMR implementation). More...
void	expectationMaximization (const Eigen::MatrixXd &data, std::vector< Eigen::VectorXd > &means, std::vector< double > &priors, std::vector< Eigen::MatrixXd > &covars, int n_max_iter=50)
	EM algorithm. More...
void	expectationMaximizationIncremental (const Eigen::MatrixXd &data, std::vector< Eigen::VectorXd > &means, std::vector< double > &priors, std::vector< Eigen::MatrixXd > &covars, int &n_observations, int n_max_iter=50)
	EM algorithm Incremental. More...
Protected Member Functions inherited from FunctionApproximator
void	setModelParameters (ModelParameters *model_parameters)
	Accessor for FunctionApproximator::model_parameters_. More...
	FunctionApproximator (void)
	Default constructor. More...

Static Protected Member Functions
static double	normalPDF (const Eigen::VectorXd &mu, const Eigen::MatrixXd &covar, const Eigen::VectorXd &input)
	The probability density function (PDF) of the multi-variate normal distribution. More...
static double	normalPDFDamped (const Eigen::VectorXd &mu, const Eigen::MatrixXd &covar, const Eigen::VectorXd &input)
	The damped probability density function (PDF) of the multi-variate normal distribution. More...

Friends
class	boost::serialization::access
	Give boost serialization access to private members. More...

Additional Inherited Members
Static Public Member Functions inherited from FunctionApproximator
static void	generateInputsGrid (const Eigen::VectorXd &min, const Eigen::VectorXd &max, const Eigen::VectorXi &n_samples_per_dim, Eigen::MatrixXd &inputs_grid)
	Generate a input samples that lie on a grid (much like Matlab's meshgrid) For instance, if min = [2 6], and max = [3 8], and n_samples_per_dim = [3 5] then this function first makes linearly spaces samples along each dimension, e.g. More...

Detailed Description

GMR (Gaussian Mixture Regression) function approximator.

Definition at line 44 of file FunctionApproximatorGMR.hpp.

Constructor & Destructor Documentation

FunctionApproximatorGMR	(	const MetaParametersGMR *const	meta_parameters,
		const ModelParametersGMR *const	model_parameters = NULL
	)

Initialize a function approximator with meta- and model-parameters.

Parameters

[in]	meta_parameters	The training algorithm meta-parameters
[in]	model_parameters	The parameters of the trained model. If this parameter is not passed, the function approximator is initialized as untrained. In this case, you must call FunctionApproximator::train() before being able to call FunctionApproximator::predict(). Either meta_parameters XOR model-parameters can passed as NULL, but not both.

Definition at line 51 of file FunctionApproximatorGMR.cpp.

:
  FunctionApproximator(meta_parameters,model_parameters)
{
  // TODO : find a more appropriate place for rand initialization
  //srand(unsigned(time(0)));
  if (model_parameters!=NULL)
    preallocateMatrices(
      model_parameters->getNumberOfGaussians(),
      model_parameters->getExpectedInputDim(),
      model_parameters->getExpectedOutputDim()
    );
}

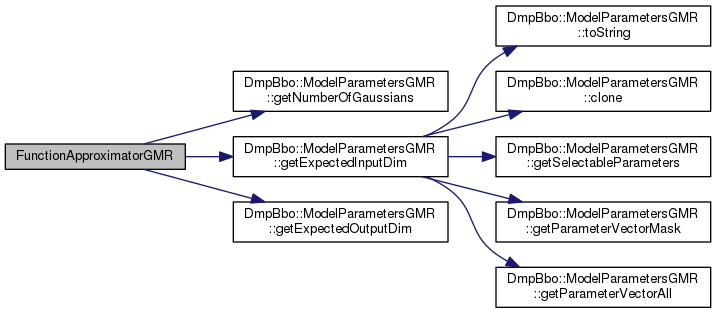

Here is the call graph for this function:

FunctionApproximatorGMR

(

const ModelParametersGMR *const

model_parameters

)

Initialize a function approximator with model parameters.

Parameters

[in]

model_parameters

The parameters of the (previously) trained model.

Definition at line 65 of file FunctionApproximatorGMR.cpp.

:
  FunctionApproximator(model_parameters)
{
    preallocateMatrices(
      model_parameters->getNumberOfGaussians(),
      model_parameters->getExpectedInputDim(),
      model_parameters->getExpectedOutputDim()
    );
}

Here is the call graph for this function:

Member Function Documentation

FunctionApproximator * clone ( void  ) const

virtual

Return a pointer to a deep copy of the FunctionApproximator object.

Returns

Pointer to a deep copy

Implements FunctionApproximator.

Definition at line 93 of file FunctionApproximatorGMR.cpp.

                                                               {
  // All error checking and cloning is left to the FunctionApproximator constructor.
  return new FunctionApproximatorGMR(
    dynamic_cast<const MetaParametersGMR*>(getMetaParameters()),
    dynamic_cast<const ModelParametersGMR*>(getModelParameters())
    );
};

Here is the call graph for this function:

void train ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, const Eigen::Ref< const Eigen::MatrixXd > &  targets  )

virtual

Train the function approximator with corresponding input and target examples.

Parameters

[in]	inputs	Input values of the training examples
[in]	targets	Target values of the training examples

Implements FunctionApproximator.

Definition at line 102 of file FunctionApproximatorGMR.cpp.

{
  if (isTrained())
  {
    cerr << "WARNING: You may not call FunctionApproximatorGMR::train more than once. Doing nothing." << endl;
    cerr << "   (if you really want to retrain, call reTrain function instead)" << endl;
    return;
  }

  assert(inputs.rows() == targets.rows()); // Must have same number of examples
  assert(inputs.cols() == getExpectedInputDim());

  const MetaParametersGMR* meta_parameters_GMR =
    static_cast<const MetaParametersGMR*>(getMetaParameters());

  const ModelParametersGMR* model_parameters_GMR =
    static_cast<const ModelParametersGMR*>(getModelParameters());

  int n_gaussians;
  if(meta_parameters_GMR!=NULL)
      n_gaussians = meta_parameters_GMR->number_of_gaussians_;
  else if(model_parameters_GMR!=NULL)
      n_gaussians = model_parameters_GMR->priors_.size();
  else
      cerr << "FunctionApproximatorGMR::train Something wrong happened, both ModelParameters and MetaParameters are not initialized." << endl;

  int n_dims_in = inputs.cols();
  int n_dims_out = targets.cols();
  int n_dims_gmm = n_dims_in + n_dims_out;

  // Initialize the means, priors and covars
  std::vector<VectorXd> means(n_gaussians);
  std::vector<MatrixXd> covars(n_gaussians);
  std::vector<double> priors(n_gaussians);
  int n_observations = 0;

  for (int i = 0; i < n_gaussians; i++)
  {
    means[i] = VectorXd(n_dims_gmm);
    priors[i] = 0.0;
    covars[i] = MatrixXd(n_dims_gmm, n_dims_gmm);
  }

  // Put the input/output data in one big matrix
  MatrixXd data = MatrixXd(inputs.rows(), n_dims_gmm);
  data << inputs, targets;
  n_observations = data.rows();

  // Initialization
  if (inputs.cols() == 1)
    firstDimSlicingInit(data, means, priors, covars);
  else
    kMeansInit(data, means, priors, covars);

  // Expectation-Maximization
  expectationMaximization(data, means, priors, covars);

  // Extract the different input/output components from the means/covars which contain both
  std::vector<Eigen::VectorXd> means_x(n_gaussians);
  std::vector<Eigen::VectorXd> means_y(n_gaussians);
  std::vector<Eigen::MatrixXd> covars_x(n_gaussians);
  std::vector<Eigen::MatrixXd> covars_y(n_gaussians);
  std::vector<Eigen::MatrixXd> covars_y_x(n_gaussians);
  for (int i_gau = 0; i_gau < n_gaussians; i_gau++)
  {
    means_x[i_gau]    = means[i_gau].segment(0, n_dims_in);
    means_y[i_gau]    = means[i_gau].segment(n_dims_in, n_dims_out);

    covars_x[i_gau]   = covars[i_gau].block(0, 0, n_dims_in, n_dims_in);
    covars_y[i_gau]   = covars[i_gau].block(n_dims_in, n_dims_in, n_dims_out, n_dims_out);
    covars_y_x[i_gau] = covars[i_gau].block(n_dims_in, 0, n_dims_out, n_dims_in);
  }

  setModelParameters(new ModelParametersGMR(n_observations, priors, means_x, means_y, covars_x, covars_y, covars_y_x));

  // After training, we know the sizes of the matrices that should be cached
  preallocateMatrices(n_gaussians,n_dims_in,n_dims_out);

  // std::vector<VectorXd> centers;
  // std::vector<MatrixXd> slopes;
  // std::vector<VectorXd> biases;
  // std::vector<MatrixXd> inverseCovarsL;

  // // int n_dims_in = inputs.cols();
  // // int n_dims_out = targets.cols();

  // for (int i_gau = 0; i_gau < n_gaussians; i_gau++)
  // {
  //   centers.push_back(VectorXd(means[i_gau].segment(0, n_dims_in)));

  //   slopes.push_back(MatrixXd(covars[i_gau].block(n_dims_in, 0, n_dims_out, n_dims_in) * covars[i_gau].block(0, 0, n_dims_in, n_dims_in).inverse()));

  //   biases.push_back(VectorXd(means[i_gau].segment(n_dims_in, n_dims_out) -
  //     slopes[i_gau]*means[i_gau].segment(0, n_dims_in)));

  //   MatrixXd L = covars[i_gau].block(0, 0, n_dims_in, n_dims_in).inverse().llt().matrixL();
  //   inverseCovarsL.push_back(MatrixXd(L));
  // }

  // setModelParameters(new ModelParametersGMR(centers, priors, slopes, biases, inverseCovarsL));

  //for (size_t i = 0; i < means.size(); i++)
  //  delete means[i];
  //for (size_t i = 0; i < covars.size(); i++)
  //delete covars[i];
}

Here is the call graph for this function:

void predict ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  outputs  )

virtual

Query the function approximator to make a prediction.

Parameters

[in]	inputs	Input values of the query
[out]	outputs	Predicted output values

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict or RRRFF::predict ). Therefore, this function cannot be const.

Implements FunctionApproximator.

Definition at line 323 of file FunctionApproximatorGMR.cpp.

{
  ENTERING_REAL_TIME_CRITICAL_CODE
  outputs.resize(inputs.rows(),getExpectedOutputDim());
  predict(inputs,outputs,empty_prealloc_);
  EXITING_REAL_TIME_CRITICAL_CODE
}

Here is the call graph for this function:

void predictVariance ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  variances  )

virtual

Query the function approximator to get the variance of a prediction This function is not implemented by all function approximators.

Therefore, the default implementation fills outputs with 0s.

Parameters

[in]	inputs	Input values of the query (n_samples X n_dims_in)
[out]	variances	Predicted variances for the output values (n_samples X n_dims_out). Note that if the output has a dimensionality>1, these variances should actuall be covariance matrices (use function predict(const Eigen::Ref<const Eigen::MatrixXd>& inputs, Eigen::MatrixXd& outputs, std::vector<Eigen::MatrixXd>& variances) to get the full covariance matrices). So for an output dimensionality of 1 this function works fine. For dimensionality>1 we return only the diagional of the covariance matrix, which may not always be what you want.

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict). Therefore, this function cannot be const.

Reimplemented from FunctionApproximator.

Definition at line 331 of file FunctionApproximatorGMR.cpp.

{
  ENTERING_REAL_TIME_CRITICAL_CODE
  variances.resize(inputs.rows(),getExpectedOutputDim());
  predict(inputs,empty_prealloc_,variances);
  EXITING_REAL_TIME_CRITICAL_CODE
}

Here is the call graph for this function:

void predict ( const Eigen::Ref< const Eigen::MatrixXd > &  inputs, Eigen::MatrixXd &  outputs, Eigen::MatrixXd &  variances  )

virtual

Query the function approximator to make a prediction, and also to predict its variance.

Parameters

[in]	inputs	Input values of the query (n_samples X n_dims_in)
[out]	outputs	Predicted output values (n_samples X n_dims_out)
[out]	variances	Predicted variances for the output values (n_samples X n_dims_out). Note that if the output has a dimensionality>1, these variances should actuall be covariance matrices (use function predict(const Eigen::Ref<const Eigen::MatrixXd>& inputs, Eigen::MatrixXd& outputs, std::vector<Eigen::MatrixXd>& variances) to get the full covariance matrices). So for an output dimensionality of 1 this function works fine. For dimensionality>1 we return only the diagional of the covariance matrix, which may not always be what you want.

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict or RRRFF::predict ). Therefore, this function cannot be const.

Reimplemented from FunctionApproximator.

Definition at line 339 of file FunctionApproximatorGMR.cpp.

{
  ENTERING_REAL_TIME_CRITICAL_CODE

  // The reason this function is not pretty and so long (which I usually try to avoid) is to
  // avoid Eigen making dynamic memory allocations. This would cause trouble in real-time critical
  // code. Therefore, I
  //   * use preallocated matrices (member variables) for intermediate results
  //   * use noalias() whenever needed (http://eigen.tuxfamily.org/dox/TopicLazyEvaluation.html)
  //   * try to avoid calling other functions (a bit tricky when using Eigen matrices as parameters)
  // I hope the documentation makes up for the ugliness...

  if (!isTrained())
  {
    cerr << "WARNING: You may not call FunctionApproximatorGMR::predict if you have not trained yet. Doing nothing." << endl;
    return;
  }

  const ModelParametersGMR* gmm = static_cast<const ModelParametersGMR*>(getModelParameters());

  // Number of Gaussians must be at least one
  assert(gmm->getNumberOfGaussians()>0);
  // Dimensionality of input must be same as of the gmm inputs
  assert(gmm->getExpectedInputDim()==inputs.cols());

  // Only compute the means if the outputs matrix is not empty
  bool compute_means = false;
  if (outputs.rows()>0)
  {
    outputs.resize(inputs.rows(),gmm->getExpectedOutputDim());
    outputs.fill(0);
    compute_means = true;
  }

  // Only compute the variances if the variances matrix is not empty
  bool compute_variance = false;
  if (variances.rows()>0)
  {
    compute_variance = true;
    variances.resize(inputs.rows(),gmm->getExpectedOutputDim());
    variances.fill(0);
  }

  // For each input, compute the output
  for (int i_input=0; i_input<inputs.rows(); i_input++)
  {

    // Three main steps
    // A: compute probability: prior * pdf of the multivariate Gaussian
    // B: compute estimated mean of y: (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
    // C: weight the estimated mean with the probability


    // A: compute probability: prior * pdf of the multivariate Gaussian
    // Compute probalities that each Gaussian would generate this input in 4 steps
    // A1. Compute the unnormalized pdf of the multi-variate Gaussian distribution
    // A2. Normalize the unnormalized pdf (scale factor has been precomputed in the GMM)
    // A3. Multiply the normalized pdf with the priors
    // A4. Normalize the probabilities by dividing by their sum

    for (unsigned int i_gau=0; i_gau<gmm->getNumberOfGaussians(); i_gau++)
    {
      // A1. Compute the unnormalized pdf of the multi-variate Gaussian distribution
      // formula: exp( -2 * (x-mu)^T * Sigma^-1 * (x-mu) )
      // (we use cached variables and noalias to avoid dynamic allocation)
      // (x-mu)
      diff_prealloc_ = inputs.row(i_input).transpose() - gmm->means_x_[i_gau];
      // Sigma^-1 * (x-mu)
      covar_times_diff_prealloc_.noalias() = gmm->covars_x_inv_[i_gau]*diff_prealloc_;
      // exp( -2 * (x-mu)^T * Sigma^-1 * (x-mu) )
      probabilities_prealloc_[i_gau] = exp(-0.5*diff_prealloc_.dot(covar_times_diff_prealloc_));

      // A2. Normalize the unnormalized pdf (scale factor has been precomputed in the GMM)
      // formula for scale factor: 1/sqrt( (2\pi)^N*|\Sigma| )
      probabilities_prealloc_[i_gau] *= gmm->mvgd_scale_[i_gau];

      // A3. Multiply the normalized pdf with the priors
      probabilities_prealloc_[i_gau] *= gmm->priors_[i_gau];

    }

    // A4. Normalize the probabilities by dividing by their sum
    probabilities_prealloc_ /= probabilities_prealloc_.sum();


    if (compute_means)
    {
      for (unsigned int i_gau=0; i_gau<gmm->getNumberOfGaussians(); i_gau++)
      {

        // B: compute estimated mean of y: (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
        // We will compute it bit by bit (with preallocated matrices) to avoid dynamic allocations.

        // (input-mu_x)
        diff_prealloc_ = inputs.row(i_input).transpose() - gmm->means_x_[i_gau];
        // inv(C_x) * (input-mu_x)
        covar_times_diff_prealloc_.noalias() = gmm->covars_x_inv_[i_gau]*diff_prealloc_;
        // ( C_y_x * inv(C_x) * (input-mu_x) )
        mean_output_prealloc_.noalias() = gmm->covars_y_x_[i_gau]*covar_times_diff_prealloc_;
        // (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
        mean_output_prealloc_ += gmm->means_y_[i_gau];

        // C: weight the estimated mean with the probability
        // probability * (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
        outputs.row(i_input) += probabilities_prealloc_[i_gau] * mean_output_prealloc_;
      }
    }

    if (compute_variance)
    {
      for (unsigned int i_gau=0; i_gau<gmm->getNumberOfGaussians(); i_gau++)
      {
        // Here comes the formula: h^2 * (C_y - C_y_x * inv(C_x) * C_y_x^T)

        // inv(C_x) * C_y_x^T
        covar_input_times_output_.noalias() = gmm->covars_x_inv_[i_gau]*gmm->covars_y_x_[i_gau].transpose();
        // - C_y_x * inv(C_x) * C_y_x^T
        covar_output_prealloc_.noalias() = gmm->covars_y_x_[i_gau] * covar_input_times_output_;
        // NOTE: covar_output_prealloc_.noalias() = - gmm->covars_y_x_[i_gau] * covar_input_times_output_; causes memory allocation
        // so we split it in two operations
        covar_output_prealloc_.noalias() = - covar_output_prealloc_;
        // (C_y - C_y_x * inv(C_x) * C_y_x^T)
        covar_output_prealloc_ += gmm->covars_y_[i_gau];
        // h^2 * (C_y - C_y_x * inv(C_x) * C_y_x^T)
        variances.row(i_input) += probabilities_prealloc_[i_gau]*probabilities_prealloc_[i_gau] * ( covar_output_prealloc_ ).diagonal();

        // There are cases where we may get slightly negative variances due to numerical issues
        // Avoid them here by setting negative variances to 0.
        for (int i_output_dim=0; i_output_dim<gmm->getExpectedOutputDim(); i_output_dim++)
          if (variances(i_input,i_output_dim)<0.0)
            variances(i_input,i_output_dim) = 0.0;


      }
    }
  }

  EXITING_REAL_TIME_CRITICAL_CODE
}

Here is the call graph for this function:

std::string getName ( void  ) const

inlinevirtual

Get the name of this function approximator.

Returns

Name of this function approximator

Implements FunctionApproximator.

Definition at line 72 of file FunctionApproximatorGMR.hpp.

                                      {
    return std::string("GMR");
  };

Here is the call graph for this function:

void kMeansInit ( const Eigen::MatrixXd &  data, std::vector< Eigen::VectorXd > &  means, std::vector< double > &  priors, std::vector< Eigen::MatrixXd > &  covars, int  n_max_iter = 1000  )

protected

Initialize Gaussian for EM algorithm using k-means.

Parameters

[in]	data	A data matrix (n_exemples x (n_in_dim + n_out_dim))
[out]	means	A list (std::vector) of n_gaussian non initiallized means (n_in_dim + n_out_dim)
[out]	priors	A list (std::vector) of n_gaussian non initiallized priors
[out]	covars	A list (std::vector) of n_gaussian non initiallized covariance matrices ((n_in_dim + n_out_dim) x (n_in_dim + n_out_dim))
[in]	n_max_iter	The maximum number of iterations

Author

Thibaut Munzer

Definition at line 696 of file FunctionApproximatorGMR.cpp.

{

  MatrixXd dataCentered = data.rowwise() - data.colwise().mean();
  MatrixXd dataCov = dataCentered.transpose() * dataCentered / data.rows();
  MatrixXd dataCovInverse = dataCov.inverse();

  std::vector<int> dataIndex;
  for (int i = 0; i < data.rows(); i++)
    dataIndex.push_back(i);
  std::random_shuffle (dataIndex.begin(), dataIndex.end());

  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    centers[i_gau] = data.row(dataIndex[i_gau]);

  VectorXi assign(data.rows());
  assign.setZero();

  bool converged = false;
  for (int iIter = 0; iIter < n_max_iter && !converged; iIter++)
  {
    //cout << "  iIter=" << iIter << endl;

    // E step
    converged = true;
    for (int iData = 0; iData < data.rows(); iData++)
    {
      VectorXd v = (centers[assign[iData]] - data.row(iData).transpose());

      double minDist = v.transpose() * dataCovInverse * v;

      for (int i_gau = 0; i_gau < (int)centers.size(); i_gau++)
      {
        if (i_gau == assign[iData])
          continue;

        v = (centers[i_gau] - data.row(iData).transpose());
        double dist = v.transpose() * dataCovInverse * v;
        if (dist < minDist)
        {
          converged = false;
          minDist = dist;
          assign[iData] = i_gau;
        }
      }
    }

    // M step
    VectorXi nbPoints = VectorXi::Zero(centers.size());
    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      centers[i_gau].setZero();
    for (int iData = 0; iData < data.rows(); iData++)
    {
      centers[assign[iData]] += data.row(iData).transpose();
      nbPoints[assign[iData]]++;
    }
    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      centers[i_gau] /= nbPoints[i_gau];
  }

  // Init covars
  VectorXi nbPoints = VectorXi::Zero(centers.size());
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    covars[i_gau].setZero();
  for (int iData = 0; iData < data.rows(); iData++)
  {
    covars[assign[iData]] += (data.row(iData).transpose() - centers[assign[iData]]) * (data.row(iData).transpose() - centers[assign[iData]]).transpose();
    nbPoints[assign[iData]]++;
  }
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    covars[i_gau] /= nbPoints[i_gau];

  // Be sure that covar is invertible
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    covars[i_gau] += MatrixXd::Identity(covars[i_gau].rows(), covars[i_gau].cols()) * 1e-5f;

  // Init priors
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    priors[i_gau] = 1. / centers.size();
}

void firstDimSlicingInit ( const Eigen::MatrixXd &  data, std::vector< Eigen::VectorXd > &  means, std::vector< double > &  priors, std::vector< Eigen::MatrixXd > &  covars  )

protected

Initialize Gaussian for EM algorithm using a same-size slicing on the first dimension (method used in Calinon GMR implementation).

Particulary suited when input is 1-D and data distribution is uniform over input dimension

Parameters

[in]	data	A data matrix (n_exemples x (n_in_dim + n_out_dim))
[out]	means	A list (std::vector) of n_gaussian non initiallized means (n_in_dim + n_out_dim)
[out]	priors	A list (std::vector) of n_gaussian non initiallized priors
[out]	covars	A list (std::vector) of n_gaussian non initiallized covariance matrices ((n_in_dim + n_out_dim) x (n_in_dim + n_out_dim))

Author

Thibaut Munzer

Definition at line 647 of file FunctionApproximatorGMR.cpp.

{

  VectorXd first_dim = data.col(0);

  VectorXi assign(data.rows());
  assign.setZero();

  double min_val = first_dim.minCoeff();
  double max_val = first_dim.maxCoeff();

  for (int i_first_dim = 0; i_first_dim < first_dim.size(); i_first_dim++)
  {
    unsigned int center = int((first_dim[i_first_dim]-min_val)/(max_val-min_val)*centers.size());
    if (center==centers.size())
      center--;
    assign[i_first_dim] = center;
  }

  // Init means
  VectorXi nbPoints = VectorXi::Zero(centers.size());
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    centers[i_gau].setZero();
  for (int iData = 0; iData < data.rows(); iData++)
  {
    centers[assign[iData]] += data.row(iData).transpose();
    nbPoints[assign[iData]]++;
  }
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    centers[i_gau] /= nbPoints[i_gau];

  // Init covars
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    covars[i_gau].setZero();
  for (int iData = 0; iData < data.rows(); iData++)
    covars[assign[iData]] += (data.row(iData).transpose() - centers[assign[iData]]) * (data.row(iData).transpose() - centers[assign[iData]]).transpose();
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    covars[i_gau] /= nbPoints[i_gau];

  // Be sure that covar is invertible
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      covars[i_gau] += MatrixXd::Identity(covars[i_gau].rows(), covars[i_gau].cols()) * 1e-5;

  // Init priors
  for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    priors[i_gau] = 1. / centers.size();
}

void expectationMaximization ( const Eigen::MatrixXd &  data, std::vector< Eigen::VectorXd > &  means, std::vector< double > &  priors, std::vector< Eigen::MatrixXd > &  covars, int  n_max_iter = 50  )

protected

EM algorithm.

Parameters

[in]	data	A (n_exemples x (n_in_dim + n_out_dim)) data matrix
[in,out]	means	A list (std::vector) of n_gaussian means (vector of size (n_in_dim + n_out_dim))
[in,out]	priors	A list (std::vector) of n_gaussian priors
[in,out]	covars	A list (std::vector) of n_gaussian covariance matrices ((n_in_dim + n_out_dim) x (n_in_dim + n_out_dim))
[in]	n_max_iter	The maximum number of iterations

Author

Thibaut Munzer

Definition at line 778 of file FunctionApproximatorGMR.cpp.

{
  MatrixXd assign(centers.size(), data.rows());
  assign.setZero();

  std::vector<double> E(centers.size());

  double oldLoglik = -1e10f;
  double loglik = 0;

  for (int iIter = 0; iIter < n_max_iter; iIter++)
  {
    //cout << "  iIter=" << iIter << endl;
    // For debugging only
    //ModelParametersGMR::saveGMM("/tmp/demoTrainFunctionApproximators/GMR",centers,covars,iIter);

    // E step
    for (int iData = 0; iData < data.rows(); iData++)
      for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
        assign(i_gau, iData) = priors[i_gau] * FunctionApproximatorGMR::normalPDF(centers[i_gau], covars[i_gau],data.row(iData).transpose());

    oldLoglik = loglik;
    loglik = 0;
    double sum_tmp = 0.0;
    for (int iData = 0; iData < data.rows(); iData++)
    {
        sum_tmp = assign.col(iData).sum();
        loglik += log(sum_tmp);
    }
    loglik /= data.rows();

    if (fabs(loglik / oldLoglik - 1) < 1e-8f)
      break;

    for (int iData = 0; iData < data.rows(); iData++)
      assign.col(iData) /= assign.col(iData).sum();

    if (fabs(loglik / oldLoglik - 1) < 1e-8f)
      break;

    // M step
    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    {
      centers[i_gau].setZero();
      covars[i_gau].setZero();
      priors[i_gau] = 0;
      E[i_gau] = assign.row(i_gau).sum();
    }

    for (int iData = 0; iData < data.rows(); iData++)
    {
      for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      {
        centers[i_gau] += assign(i_gau, iData) * data.row(iData).transpose();
        priors[i_gau] += assign(i_gau, iData);
      }
    }

    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    {
      centers[i_gau] /= assign.row(i_gau).sum();
      priors[i_gau] /= assign.cols();
    }

    for (int iData = 0; iData < data.rows(); iData++)
      for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
        covars[i_gau] += assign(i_gau, iData) * (data.row(iData).transpose() - centers[i_gau]) * (data.row(iData).transpose() - centers[i_gau]).transpose();

    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      covars[i_gau] /= assign.row(i_gau).sum();

    // Be sure that covar is invertible
    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      covars[i_gau] += MatrixXd::Identity(covars[i_gau].rows(), covars[i_gau].cols()) * 1e-5f;
  }

  /*
  Here's a hacky Matlab script for plotting the EM procedure above (if you cann saveGMM)
  directory = '/tmp/demoTrainFunctionApproximators/GMR/';
  inputs = load([directory '/inputs.txt']);
  targets = load([directory '/targets.txt']);
  outputs = load([directory '/outputs.txt']);


  plot(inputs,targets,'.k')
  hold on
  plot(inputs,outputs,'.r')

  max_iter = 5;
  for iter=0:max_iter
    color = 0.2+(0.8-iter/max_iter)*[1 1 1];
    for bfs=0:2
      center = load(sprintf('%s/gmm_iter%02d_mu%03d.txt',directory,iter,bfs));
      %plot(center(1),center(2))
      covar = load(sprintf('%s/gmm_iter%02d_covar%03d.txt',directory,iter,bfs));
      h = error_ellipse(covar,center,'conf',0.95);
      set(h,'Color',color,'LineWidth',1+iter/max_iter)
    end
  end
  hold off
  */

}

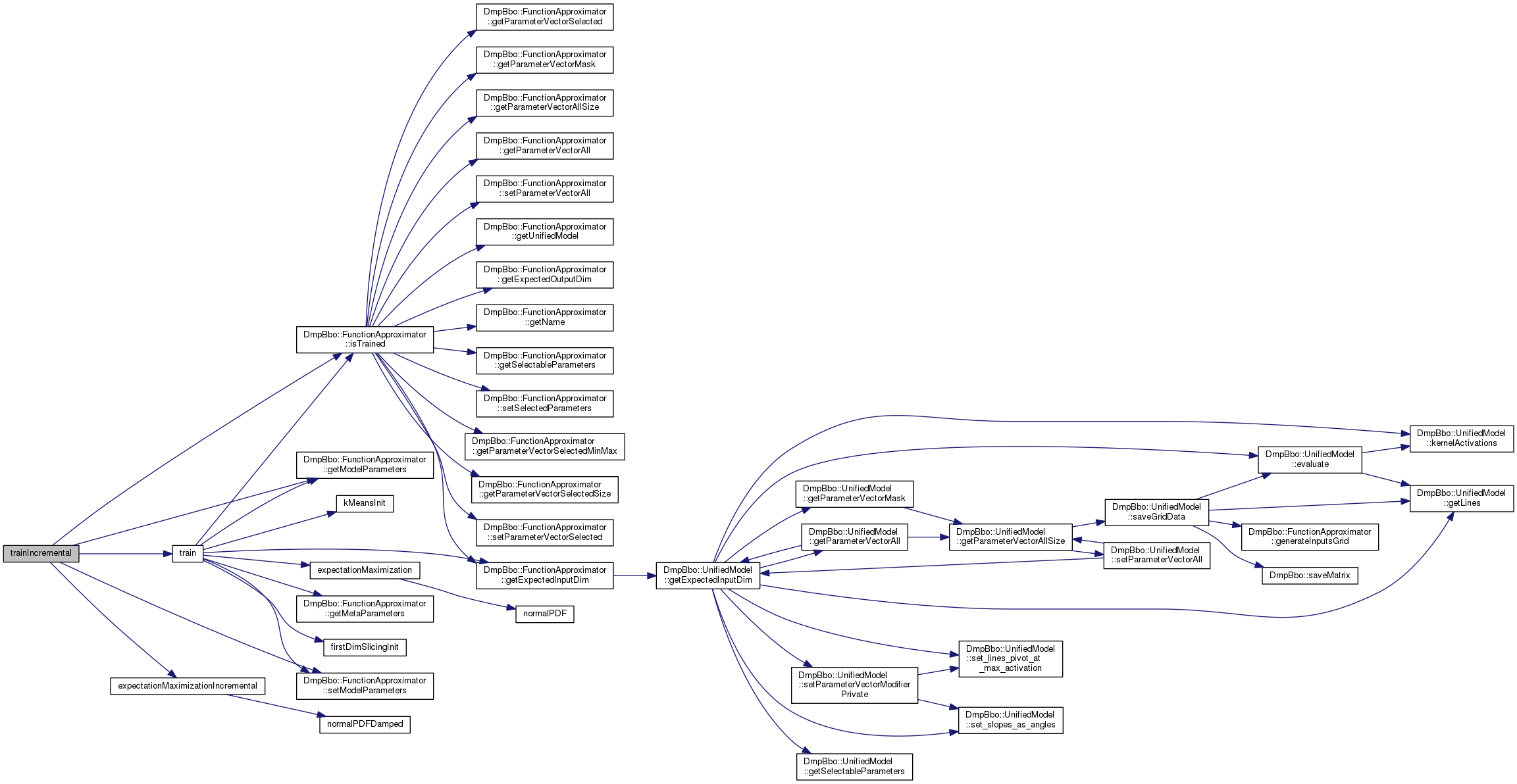

Here is the call graph for this function:

void expectationMaximizationIncremental ( const Eigen::MatrixXd &  data, std::vector< Eigen::VectorXd > &  means, std::vector< double > &  priors, std::vector< Eigen::MatrixXd > &  covars, int &  n_observations, int  n_max_iter = 50  )

protected

EM algorithm Incremental.

Parameters

[in]	data	A (n_exemples x (n_in_dim + n_out_dim)) data matrix
[in,out]	means	A list (std::vector) of n_gaussian means (vector of size (n_in_dim + n_out_dim))
[in,out]	priors	A list (std::vector) of n_gaussian priors
[in,out]	covars	A list (std::vector) of n_gaussian covariance matrices ((n_in_dim + n_out_dim) x (n_in_dim + n_out_dim))
[in,out]	n_observations	Number of observations
[in]	n_max_iter	The maximum number of iterations

Author

Gennaro Raiola

Definition at line 883 of file FunctionApproximatorGMR.cpp.

{

  std::vector<VectorXd> centers_prev = centers;
  std::vector<double> priors_prev = priors;
  std::vector<MatrixXd> covars_prev = covars;
  int n_observations_prev = n_observations;
  std::vector<double> E_prev;
  std::vector<double> E(centers.size());
  n_observations = data.rows();

  double oldLoglik = -1e10f;
  double loglik = 0;

  MatrixXd assign(centers.size(), data.rows());
  assign.setZero();

  // Compute the old E
  E_prev.resize(centers.size());
  for (size_t i_gau = 0; i_gau<centers.size(); i_gau++)
      E_prev[i_gau] = priors_prev[i_gau] * n_observations_prev;

  for (int iIter = 0; iIter < n_max_iter; iIter++)
  {
    //cout << "  iIter=" << iIter << endl;
    // For debugging only
    //ModelParametersGMR::saveGMM("/tmp/demoTrainFunctionApproximators/GMR",centers,covars,iIter);

    // E step
    for (int iData = 0; iData < data.rows(); iData++)
      for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
        assign(i_gau, iData) = priors[i_gau] * FunctionApproximatorGMR::normalPDFDamped(centers[i_gau], covars[i_gau],data.row(iData).transpose());

    oldLoglik = loglik;
    loglik = 0;
    double sum_tmp = 0.0;
    for (int iData = 0; iData < data.rows(); iData++)
    {
        sum_tmp = assign.col(iData).sum();
        loglik += log(sum_tmp);
    }
    loglik /= data.rows();

    for (int iData = 0; iData < data.rows(); iData++)
      assign.col(iData) /= assign.col(iData).sum();

    if (fabs(loglik / oldLoglik - 1) < 1e-8f)
      break;

    // M step
    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    {
      centers[i_gau].setZero();
      covars[i_gau].setZero();
      priors[i_gau] = 0;
      E[i_gau] = assign.row(i_gau).sum();
      //E_prev[i_gau] = assign_prev.row(i_gau).sum();
    }

    for (int iData = 0; iData < data.rows(); iData++)
    {
      for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      {
          centers[i_gau] += assign(i_gau, iData) * data.row(iData).transpose();
      }
    }

    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
    {
      centers[i_gau] = (E_prev[i_gau] * centers_prev[i_gau] + centers[i_gau])/(E[i_gau] + E_prev[i_gau]);
      priors[i_gau] = (E[i_gau] + E_prev[i_gau])/(n_observations + n_observations_prev);
    }

    for (int iData = 0; iData < data.rows(); iData++)
      for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
        covars[i_gau] += assign(i_gau, iData) * (data.row(iData).transpose() - centers[i_gau]) * (data.row(iData).transpose() - centers[i_gau]).transpose();

    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      covars[i_gau] = covars[i_gau] +  E_prev[i_gau] * (covars_prev[i_gau] + (centers_prev[i_gau] - centers[i_gau]) * (centers_prev[i_gau] - centers[i_gau]).transpose());

    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
        covars[i_gau] /= (E[i_gau] + E_prev[i_gau]);

    // Be sure that covar is invertible
    for (size_t i_gau = 0; i_gau < centers.size(); i_gau++)
      covars[i_gau] += MatrixXd::Identity(covars[i_gau].rows(), covars[i_gau].cols()) * 1e-5f;
  }

  // Increase the total number of obs counting the old plus the new
  n_observations += n_observations_prev;
}

Here is the call graph for this function:

double normalPDF ( const Eigen::VectorXd &  mu, const Eigen::MatrixXd &  covar, const Eigen::VectorXd &  input  )

staticprotected

The probability density function (PDF) of the multi-variate normal distribution.

Parameters

[in]	mu	The mean of the normal distribution
[in]	covar	The covariance matrix of the normal distribution
[in]	input	The input data vector for which the PDF will be computed.

Returns

The PDF value for the input

Definition at line 283 of file FunctionApproximatorGMR.cpp.

{
  MatrixXd covar_inverse = covar.inverse();
  double output = exp(-0.5*(input-mu).transpose()*covar_inverse*(input-mu));
  // For invertible matrices (which covar apparently was), det(A^-1) = 1/det(A)
  // Hence the 1.0/covar_inverse.determinant() below
  //  ( (2*pi)^N*|\Sigma| )^(-1/2)
  output *= pow(pow(2*M_PI,mu.size())/covar_inverse.determinant(),-0.5);
  return output;
}

double normalPDFDamped ( const Eigen::VectorXd &  mu, const Eigen::MatrixXd &  covar, const Eigen::VectorXd &  input  )

staticprotected

The damped probability density function (PDF) of the multi-variate normal distribution.

Parameters

[in]	mu	The mean of the normal distribution
[in]	covar	The covariance matrix of the normal distribution
[in]	input	The input data vector for which the PDF will be computed.

Returns

The PDF value for the input

Author

Gennaro Raiola

Todo:

Document FunctionApproximatorGMR::normalPDFDamped

Definition at line 297 of file FunctionApproximatorGMR.cpp.

{
  if(covar.determinant() > 0) // It is invertible
  {
    MatrixXd covar_inverse = covar.inverse();

      double output = exp(-0.5*(input-mu).transpose()*covar_inverse*(input-mu));

      // Check that:
      // if output == 0.0
      // return 0.0;

      // For invertible matrices (which covar apparently was), det(A^-1) = 1/det(A)
      // Hence the 1.0/covar_inverse.determinant() below
      //  ( (2\pi)^N*|\Sigma| )^(-1/2)
      output *= pow(pow(2*M_PI,mu.size())/(covar_inverse.determinant()),-0.5);
      return output;
  }
  else
  {
      //cerr << "WARNING: FunctionApproximatorGMR::normalPDFDamped output close to singularity..." << endl;
      return std::numeric_limits<double>::min();
  }
}

void predictDot	(	const Eigen::Ref< const Eigen::MatrixXd > &	inputs,
		Eigen::MatrixXd &	outputs,
		Eigen::MatrixXd &	outputs_dot
	)

Query the function approximator to make a prediction and to compute the derivate of that prediction.

Parameters

[in]	inputs	Input values of the query
[out]	outputs	Predicted output values
[out]	outputs_dot	Predicted derivate values

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict or RRRFF::predict ). Therefore, this function cannot be const.

Definition at line 479 of file FunctionApproximatorGMR.cpp.

{
  ENTERING_REAL_TIME_CRITICAL_CODE
  outputs.resize(inputs.rows(),getExpectedOutputDim());
  predictDot(inputs,outputs,outputs_dot,empty_prealloc_);
  EXITING_REAL_TIME_CRITICAL_CODE
}

Here is the call graph for this function:

void predictDot	(	const Eigen::Ref< const Eigen::MatrixXd > &	inputs,
		Eigen::MatrixXd &	outputs,
		Eigen::MatrixXd &	outputs_dot,
		Eigen::MatrixXd &	variances
	)

Query the function approximator to make a prediction and to compute the derivate of that prediction, and also to predict its variance.

Parameters

[in]	inputs	Input values of the query (n_samples X n_dims_in)
[out]	outputs	Predicted output values (n_samples X n_dims_out)
[out]	outputs_dot	Predicted derivate values
[out]	variances	Predicted variances for the output values (n_samples X n_dims_out). Note that if the output has a dimensionality>1, these variances should actuall be covariance matrices (use function predict(const Eigen::Ref<const Eigen::MatrixXd>& inputs, Eigen::MatrixXd& outputs, std::vector<Eigen::MatrixXd>& variances) to get the full covariance matrices). So for an output dimensionality of 1 this function works fine. For dimensionality>1 we return only the diagional of the covariance matrix, which may not always be what you want.

Remarks

This method should be const. But third party functions which is called in this function have not always been implemented as const (Examples: LWPRObject::predict). Therefore, this function cannot be const.

Definition at line 487 of file FunctionApproximatorGMR.cpp.

{
  ENTERING_REAL_TIME_CRITICAL_CODE

  // The reason this function is not pretty and so long (which I usually try to avoid) is to
  // avoid Eigen making dynamic memory allocations. This would cause trouble in real-time critical
  // code. Therefore, I
  //   * use preallocated matrices (member variables) for intermediate results
  //   * use noalias() whenever needed (http://eigen.tuxfamily.org/dox/TopicLazyEvaluation.html)
  //   * try to avoid calling other functions (a bit tricky when using Eigen matrices as parameters)
  // I hope the documentation makes up for the ugliness...

  if (!isTrained())
  {
    cerr << "WARNING: You may not call FunctionApproximatorGMR::predict if you have not trained yet. Doing nothing." << endl;
    return;
  }

  const ModelParametersGMR* gmm = static_cast<const ModelParametersGMR*>(getModelParameters());

  // Dimensionality of input must be 1 in order to compute the derivative
  assert(inputs.cols() == 1);
  // Number of Gaussians must be at least one
  assert(gmm->getNumberOfGaussians()>0);
  // Dimensionality of input must be same as of the gmm inputs
  assert(gmm->getExpectedInputDim()==inputs.cols());

  // Only compute the means if the outputs matrix is not empty
  bool compute_means = false;
  if (outputs.rows()>0)
  {
    outputs.resize(inputs.rows(),gmm->getExpectedOutputDim());
    outputs_dot.resize(inputs.rows(),gmm->getExpectedOutputDim());
    outputs.fill(0);
    outputs_dot.fill(0);
    compute_means = true;
  }

  // Only compute the variances if the variances matrix is not empty
  bool compute_variance = false;
  if (variances.rows()>0)
  {
    compute_variance = true;
    variances.resize(inputs.rows(),gmm->getExpectedOutputDim());
    variances.fill(0);
  }

  // For each input, compute the output
  for (int i_input=0; i_input<inputs.rows(); i_input++)
  {

    // Three main steps
    // A: compute probability: prior * pdf of the multivariate Gaussian
    // B: compute estimated mean of y: (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
    // C: weight the estimated mean with the probability


    // A: compute probability: prior * pdf of the multivariate Gaussian
    // Compute probalities that each Gaussian would generate this input in 4 steps
    // A1. Compute the unnormalized pdf of the multi-variate Gaussian distribution
    // A2. Normalize the unnormalized pdf (scale factor has been precomputed in the GMM)
    // A3. Multiply the normalized pdf with the priors
    // A4. Normalize the probabilities by dividing by their sum

    for (unsigned int i_gau=0; i_gau<gmm->getNumberOfGaussians(); i_gau++)
    {
      // A1. Compute the unnormalized pdf of the multi-variate Gaussian distribution
      // formula: exp( -2 * (x-mu)^T * Sigma^-1 * (x-mu) )
      // (we use cached variables and noalias to avoid dynamic allocation)
      // (x-mu)
      diff_prealloc_ = inputs.row(i_input).transpose() - gmm->means_x_[i_gau];
      // Sigma^-1 * (x-mu)
      covar_times_diff_prealloc_.noalias() = gmm->covars_x_inv_[i_gau]*diff_prealloc_;
      // exp( -2 * (x-mu)^T * Sigma^-1 * (x-mu) )
      probabilities_prealloc_[i_gau] = exp(-0.5*diff_prealloc_.dot(covar_times_diff_prealloc_));

      // A2. Normalize the unnormalized pdf (scale factor has been precomputed in the GMM)
      // formula for scale factor: 1/sqrt( (2\pi)^N*|\Sigma| )
      probabilities_prealloc_[i_gau] *= gmm->mvgd_scale_[i_gau];

      // A3. This is the derivate of an exponential function, NOTE that we are assuming input dimension equal to one!
      probabilities_dot_prealloc_[i_gau] *= - probabilities_prealloc_[i_gau] * covar_times_diff_prealloc_(0,0);

      // A4. Multiply the normalized pdf with the priors
      probabilities_prealloc_[i_gau] *= gmm->priors_[i_gau];

      // A5. Repeat the same with the prob. dot
      probabilities_dot_prealloc_[i_gau] *= gmm->priors_[i_gau];

    }

    // A5. Normalize the probabilities by dividing by their sum
    probabilities_prealloc_sum_ = probabilities_prealloc_.sum();
    probabilities_prealloc_ /= probabilities_prealloc_sum_;

    // A6. Compute the derivative of the probability
    probabilities_dot_prealloc_sum_ = probabilities_dot_prealloc_.sum();
    probabilities_dot_prealloc_ = (probabilities_dot_prealloc_ * probabilities_prealloc_sum_ - probabilities_prealloc_ * probabilities_dot_prealloc_sum_)/pow(probabilities_prealloc_sum_,2);

    if (compute_means)
    {
      for (unsigned int i_gau=0; i_gau<gmm->getNumberOfGaussians(); i_gau++)
      {

        // B: compute estimated mean of y: (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
        // We will compute it bit by bit (with preallocated matrices) to avoid dynamic allocations.
        // (input-mu_x)
        diff_prealloc_ = inputs.row(i_input).transpose() - gmm->means_x_[i_gau];
        // inv(C_x) * (input-mu_x)
        covar_times_diff_prealloc_.noalias() = gmm->covars_x_inv_[i_gau]*diff_prealloc_;
        // ( C_y_x * inv(C_x) * (input-mu_x) )
        mean_output_prealloc_.noalias() = gmm->covars_y_x_[i_gau]*covar_times_diff_prealloc_;
        // (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
        mean_output_prealloc_ += gmm->means_y_[i_gau];

        // C: weight the estimated mean with the probability
        // probability * (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) )
        outputs.row(i_input) += probabilities_prealloc_[i_gau] * mean_output_prealloc_;

        // D: compute the derivate of the output
        // (C_y_x * inv(C_x))
        covar_output_times_input_.noalias() = gmm->covars_y_x_[i_gau] * gmm->covars_x_inv_[i_gau];
        // probability_dot * (mu_y + ( C_y_x * inv(C_x) * (input-mu_x) ) ) + probability * (C_y_x * inv(C_x))
        outputs_dot.row(i_input) += probabilities_dot_prealloc_[i_gau] * mean_output_prealloc_ +  probabilities_prealloc_[i_gau] * covar_output_times_input_;

      }
    }

    if (compute_variance)
    {
      for (unsigned int i_gau=0; i_gau<gmm->getNumberOfGaussians(); i_gau++)
      {
        // Here comes the formula: h^2 * (C_y - C_y_x * inv(C_x) * C_y_x^T)

        // inv(C_x) * C_y_x^T
        covar_input_times_output_.noalias() = gmm->covars_x_inv_[i_gau]*gmm->covars_y_x_[i_gau].transpose();
        // - C_y_x * inv(C_x) * C_y_x^T
        covar_output_prealloc_.noalias() = gmm->covars_y_x_[i_gau] * covar_input_times_output_;
        // NOTE: covar_output_prealloc_.noalias() = - gmm->covars_y_x_[i_gau] * covar_input_times_output_; causes memory allocation
        // so we split it in two operations
        covar_output_prealloc_.noalias() = - covar_output_prealloc_;
        // (C_y - C_y_x * inv(C_x) * C_y_x^T)
        covar_output_prealloc_ += gmm->covars_y_[i_gau];
        // h^2 * (C_y - C_y_x * inv(C_x) * C_y_x^T)
        variances.row(i_input) += probabilities_prealloc_[i_gau]*probabilities_prealloc_[i_gau] * ( covar_output_prealloc_ ).diagonal();

        // There are cases where we may get slightly negative variances due to numerical issues
        // Avoid them here by setting negative variances to 0.
        for (int i_output_dim=0; i_output_dim<gmm->getExpectedOutputDim(); i_output_dim++)
          if (variances(i_input,i_output_dim)<0.0)
            variances(i_input,i_output_dim) = 0.0;


      }
    }
  }

  EXITING_REAL_TIME_CRITICAL_CODE
}

Here is the call graph for this function:

void trainIncremental	(	const Eigen::Ref< const Eigen::MatrixXd > &	inputs,
		const Eigen::Ref< const Eigen::MatrixXd > &	targets
	)

Train the function approximator incrementally with corresponding input and target examples.

Parameters

[in]	inputs	Input values of the training examples
[in]	targets	Target values of the training examples

Todo:

Document FunctionApproximatorGMR::trainIncremental

Definition at line 211 of file FunctionApproximatorGMR.cpp.

{
  if (!isTrained())
  {
    //cout << " Training for the first time... " << endl;
    train(inputs,targets);
    return;
  }

  const ModelParametersGMR* model_parameters_GMR = static_cast<const ModelParametersGMR*>(getModelParameters());


  int n_gaussians = model_parameters_GMR->priors_.size();
  int n_dims_in = inputs.cols();
  int n_dims_out = targets.cols();
  int n_dims_gmm = n_dims_in + n_dims_out;

  // Initialize the means, priors and covars
  std::vector<VectorXd> means(n_gaussians);
  std::vector<MatrixXd> covars(n_gaussians);
  std::vector<double> priors(n_gaussians);
  int n_observations = 0;
  for (int i = 0; i < n_gaussians; i++)
  {
    means[i] = VectorXd(n_dims_gmm);
    priors[i] = 0.0;
    covars[i] = MatrixXd(n_dims_gmm, n_dims_gmm);
  }

  // Extract the model parameters
  for (int i = 0; i < n_gaussians; i++)
  {
    means[i].segment(0, n_dims_in)    = model_parameters_GMR->means_x_[i];
    means[i].segment(n_dims_in, n_dims_out)    = model_parameters_GMR->means_y_[i];

    covars[i].block(0, 0, n_dims_in, n_dims_in)   = model_parameters_GMR->covars_x_[i];
    covars[i].block(n_dims_in, n_dims_in, n_dims_out, n_dims_out)   = model_parameters_GMR->covars_y_[i];
    covars[i].block(n_dims_in, 0, n_dims_out, n_dims_in) = model_parameters_GMR->covars_y_x_[i];

    priors[i] = model_parameters_GMR->priors_[i];
  }
  n_observations = model_parameters_GMR->n_observations_;

  // Put the input/output data in one big matrix
  MatrixXd data = MatrixXd(inputs.rows(), n_dims_gmm);
  data << inputs, targets;

  // Expectation-Maximization Incremental
  expectationMaximizationIncremental(data, means, priors, covars, n_observations);

  // Extract the different input/output components from the means/covars which contain both
  std::vector<Eigen::VectorXd> means_x(n_gaussians);
  std::vector<Eigen::VectorXd> means_y(n_gaussians);
  std::vector<Eigen::MatrixXd> covars_x(n_gaussians);
  std::vector<Eigen::MatrixXd> covars_y(n_gaussians);
  std::vector<Eigen::MatrixXd> covars_y_x(n_gaussians);
  for (int i_gau = 0; i_gau < n_gaussians; i_gau++)
  {
    means_x[i_gau]    = means[i_gau].segment(0, n_dims_in);
    means_y[i_gau]    = means[i_gau].segment(n_dims_in, n_dims_out);

    covars_x[i_gau]   = covars[i_gau].block(0, 0, n_dims_in, n_dims_in);
    covars_y[i_gau]   = covars[i_gau].block(n_dims_in, n_dims_in, n_dims_out, n_dims_out);
    covars_y_x[i_gau] = covars[i_gau].block(n_dims_in, 0, n_dims_out, n_dims_in);
  }

  setModelParameters(new ModelParametersGMR(n_observations, priors, means_x, means_y, covars_x, covars_y, covars_y_x));

  // After training, we know the sizes of the matrices that should be cached
  preallocateMatrices(n_gaussians,n_dims_in,n_dims_out);
}

Here is the call graph for this function:

Friends And Related Function Documentation

friend class boost::serialization::access

friend

Give boost serialization access to private members.

Definition at line 177 of file FunctionApproximatorGMR.hpp.

---

The documentation for this class was generated from the following files:

• FunctionApproximatorGMR.hpp
• FunctionApproximatorGMR.cpp
