Dynamical System modelling the evolution of an exponential system: $\dot{x} = -\alpha (x-x^g)$ . More...

#include <ExponentialSystem.hpp>

Inheritance diagram for ExponentialSystem:

Collaboration diagram for ExponentialSystem:

Public Member Functions
	ExponentialSystem (double tau, Eigen::VectorXd y_init, Eigen::VectorXd y_attr, double alpha, std::string name="ExponentialSystem")
	Initialization constructor. More...

	~ExponentialSystem (void)
	Destructor. More...

DynamicalSystem *	clone (void) const
	Return a pointer to a deep copy of the DynamicalSystem object. More...

void	differentialEquation (const Eigen::Ref< const Eigen::VectorXd > &x, Eigen::Ref< Eigen::VectorXd > xd) const
	The differential equation which defines the system. More...

void	analyticalSolution (const Eigen::VectorXd &ts, Eigen::MatrixXd &xs, Eigen::MatrixXd &xds) const
	Return analytical solution of the system at certain times. More...

double	alpha (void) const
	Accessor function for decay constant. More...

std::string	toString (void) const
	Returns a string representation of the object. More...

Public Member Functions inherited from DynamicalSystem
	DynamicalSystem (int order, double tau, Eigen::VectorXd initial_state, Eigen::VectorXd attractor_state, std::string name)
	Initialization constructor. More...

virtual	~DynamicalSystem (void)
	Destructor.

virtual void	integrateStart (Eigen::Ref< Eigen::VectorXd > x, Eigen::Ref< Eigen::VectorXd > xd) const
	Start integrating the system. More...

void	integrateStart (const Eigen::VectorXd &x_init, Eigen::Ref< Eigen::VectorXd > x, Eigen::Ref< Eigen::VectorXd > xd)
	Start integrating the system with a new initial state. More...

virtual void	integrateStep (double dt, const Eigen::Ref< const Eigen::VectorXd > x, Eigen::Ref< Eigen::VectorXd > x_updated, Eigen::Ref< Eigen::VectorXd > xd_updated) const
	Integrate the system one time step. More...

void	set_integration_method (IntegrationMethod integration_method)
	Choose the integration method. More...

int	dim (void) const
	Get the dimensionality of the dynamical system, i.e. More...

int	dim_orig (void) const
	Get the dimensionality of the dynamical system, i.e. More...

double	tau (void) const
	Accessor function for the time constant. More...

virtual void	set_tau (double tau)
	Mutator function for the time constant. More...

Eigen::VectorXd	initial_state (void) const
	Accessor function for the initial state of the dynamical system. More...

void	initial_state (Eigen::VectorXd &initial_state) const
	Accessor function for the initial state of the dynamical system. More...

virtual void	set_initial_state (const Eigen::VectorXd &initial_state)
	Mutator function for the initial state of the dynamical system. More...

Eigen::VectorXd	attractor_state (void) const
	Accessor function for the attractor state of the dynamical system. More...

void	attractor_state (Eigen::VectorXd &attractor_state) const
	Accessor function for the attractor state of the dynamical system. More...

virtual void	set_attractor_state (const Eigen::Ref< const Eigen::VectorXd > &attractor_state)
	Mutator function for the attractor state of the dynamical system. More...

std::string	name (void) const
	Accessor function for the name of the dynamical system. More...

virtual void	set_name (std::string name)
	Mutator function for the name of the dynamical system. More...

Friends
class	boost::serialization::access
	Give boost serialization access to private members. More...

Additional Inherited Members
Public Types inherited from DynamicalSystem
enum	IntegrationMethod { EULER, RUNGE_KUTTA }
	The possible integration methods that can be used. More...

Protected Member Functions inherited from DynamicalSystem
	DynamicalSystem (void)
	Default constructor. More...

void	set_dim (int dim)
	Set the dimensionality of the dynamical system, i.e. More...

Detailed Description

Dynamical System modelling the evolution of an exponential system: $\dot{x} = -\alpha (x-x^g)$ .

http://en.wikipedia.org/wiki/Exponential_decay

http://en.wikipedia.org/wiki/Exponential_growth

Definition at line 42 of file ExponentialSystem.hpp.

Constructor & Destructor Documentation

ExponentialSystem	(	double	tau,
		Eigen::VectorXd	y_init,
		Eigen::VectorXd	y_attr,
		double	alpha,
		std::string	name = `"ExponentialSystem"`
	)

Initialization constructor.

Parameters

tau	Time constant, cf. DynamicalSystem::tau()
y_init	Initial state, cf. DynamicalSystem::initial_state()
y_attr	Attractor state, cf. DynamicalSystem::attractor_state()
alpha	Decay constant, cf. ExponentialSystem::alpha()
name	Name for the sytem, cf. DynamicalSystem::name()

Definition at line 50 of file ExponentialSystem.cpp.

   : DynamicalSystem(1, tau, y_init, y_attr, name),
   alpha_(alpha)
 {
   attractor_state_prealloc_ = VectorXd::Zero(dim_orig());
 }

Here is the call graph for this function:

~ExponentialSystem ( void )

Destructor.

Definition at line 57 of file ExponentialSystem.cpp.

58 {

59 }

Member Function Documentation

DynamicalSystem * clone ( void ) const

virtual

Return a pointer to a deep copy of the DynamicalSystem object.

Returns: Pointer to a deep copy

Implements DynamicalSystem.

Definition at line 61 of file ExponentialSystem.cpp.

 {
   return new ExponentialSystem(tau(),initial_state(),attractor_state(),alpha_,name());
 }

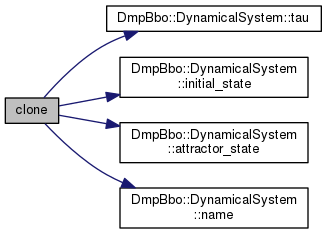

Here is the call graph for this function:

void differentialEquation	(	const Eigen::Ref< const Eigen::VectorXd > &	x,
		Eigen::Ref< Eigen::VectorXd >	xd
	)		const

virtual

The differential equation which defines the system.

It relates state values to rates of change of those state values

Parameters

[in]	x	current state (column vector of size dim() X 1)
[out]	xd	rate of change in state (column vector of size dim() X 1)

Remarks: x and xd should be of size dim() X 1. This forces you to pre-allocate memory, which speeds things up (and also makes Eigen's Ref functionality easier to deal with).

Implements DynamicalSystem.

Definition at line 67 of file ExponentialSystem.cpp.

 {
   ENTERING_REAL_TIME_CRITICAL_CODE
   // xd = alpha_*(attractor_state()-x)/tau(); // Non-realtime version now commented out

   attractor_state(attractor_state_prealloc_);
   xd.noalias() = alpha_*(attractor_state_prealloc_-x)/tau();

   EXITING_REAL_TIME_CRITICAL_CODE
 }

Here is the call graph for this function:

void analyticalSolution	(	const Eigen::VectorXd &	ts,
		Eigen::MatrixXd &	xs,
		Eigen::MatrixXd &	xds
	)		const

virtual

Return analytical solution of the system at certain times.

Parameters

[in]	ts	A vector of times for which to compute the analytical solutions
[out]	xs	Sequence of state vectors. T x D or D x T matrix, where T is the number of times (the length of 'ts'), and D the size of the state (i.e. dim())
[out]	xds	Sequence of state vectors (rates of change). T x D or D x T matrix, where T is the number of times (the length of 'ts'), and D the size of the state (i.e. dim())

Remarks: The output xs and xds will be of size D x T only if the matrix x you pass as an argument of size D x T. In all other cases (i.e. including passing an empty matrix) the size of x will be T x D. This feature has been added so that you may pass matrices of either size.

Implements DynamicalSystem.

Definition at line 80 of file ExponentialSystem.cpp.

 {
   int T = ts.size();
   assert(T>0);

   // Usually, we expect xs and xds to be of size T X dim(), so we resize to that. However, if the
   // input matrices were of size dim() X T, we return the matrices of that size by doing a
   // transposeInPlace at the end. That way, the user can also request dim() X T sized matrices.
   bool caller_expects_transposed = (xs.rows()==dim() && xs.cols()==T);

   // Prepare output arguments to be of right size (Eigen does nothing if already the right size)
   xs.resize(T,dim());
   xds.resize(T,dim());

   VectorXd val_range = initial_state() - attractor_state();

   VectorXd exp_term  = -alpha_*ts/tau();
   exp_term = exp_term.array().exp().transpose();
   VectorXd pos_scale =                   exp_term;
   VectorXd vel_scale = -(alpha_/tau()) * exp_term;

   xs = val_range.transpose().replicate(T,1).array() * pos_scale.replicate(1,dim()).array();
   xs += attractor_state().transpose().replicate(T,1);
   xds = val_range.transpose().replicate(T,1).array() * vel_scale.replicate(1,dim()).array();

   if (caller_expects_transposed)
   {
     xs.transposeInPlace();
     xds.transposeInPlace();
   }
 }

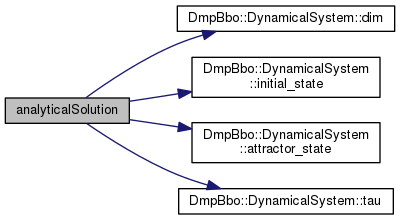

Here is the call graph for this function:

double alpha ( void ) const

inline

Accessor function for decay constant.

Returns: Decay constant

Definition at line 71 of file ExponentialSystem.hpp.

                            {
     return alpha_;
   }

Here is the call graph for this function:

string toString ( void ) const

virtual

Returns a string representation of the object.

Returns: A string representation of the object.

Implements DynamicalSystem.

Definition at line 121 of file ExponentialSystem.cpp.

 {
   RETURN_STRING_FROM_BOOST_SERIALIZATION_XML("ExponentialSystem");
 }

Friends And Related Function Documentation

friend class boost::serialization::access

friend

Give boost serialization access to private members.

Definition at line 94 of file ExponentialSystem.hpp.

The documentation for this class was generated from the following files:
